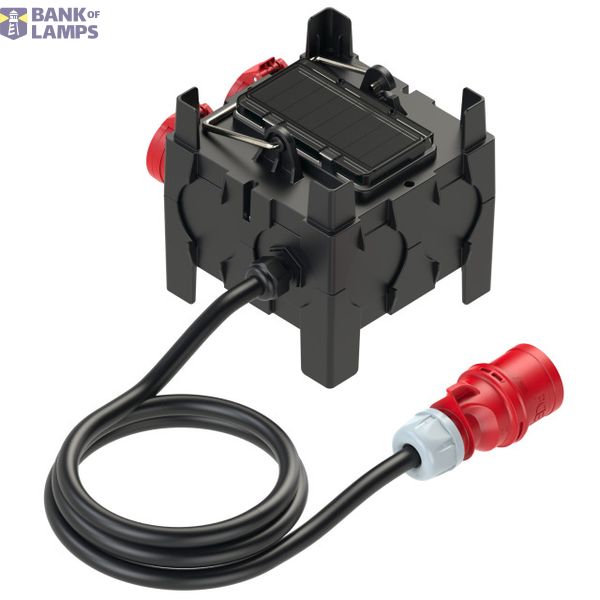

Distribution box plastic mobile IMST MV 2x16/5 2xSSD 2m5G4 oFI-mLS Ea S IP44
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box plastic mobile IMST MV 2x16/5 2xSSD 2m5G4 oFI-mLS Ea S IP44 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Portable |
| Degree of protection (IP) | IP44 |
Packing details
| Packing level 1 | 9003399103988 |
Other Technical data
| Colour | Grey |
| Width | 197 mm |
| Height | 200 mm |
| Depth | 197 mm |
| Number of socket outlets with protective contact (type F) | 2 |
| Cable length | 2 m |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | None |
| CEE socket outlet 16 A | 4x16A5p400V |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 4 |
| Type of mains connection | CEE 32 A |
Downloads
Description

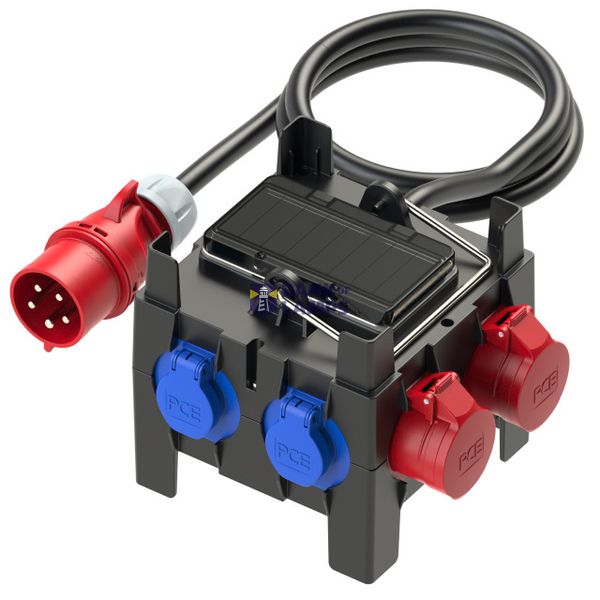

thermoplastic mobile distribution box model IMST IP44 197x197x200 8TE sw
2m cable H07RN-F 5G4mm2 black with plug 32A 5p 400V
2xCEE-socket 16A 5p 400V fused with 2xMCB``s 16A 3p C
2xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is ready wired for using
Label: "Additional protection by FI circuit breaker on the supply side required!"
please note:
According to the applicable electrical installation regulations, sockets up to and including 32A
basically are with residual current protection max. to protect 30mA.
The objective resource is following the customer requests
executed without residual current protection!
It is part of the customer agreement, the safety of the electrical system
regarding the lack of residual current protection through suitable replacement measures
to be manufactured in accordance with the applicable electrical installation regulations.
The legally compliant implementation of these replacement measures
is the sole responsibility of the installer / operator.
2m cable H07RN-F 5G4mm2 black with plug 32A 5p 400V
2xCEE-socket 16A 5p 400V fused with 2xMCB``s 16A 3p C
2xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is ready wired for using
Label: "Additional protection by FI circuit breaker on the supply side required!"
please note:
According to the applicable electrical installation regulations, sockets up to and including 32A
basically are with residual current protection max. to protect 30mA.
The objective resource is following the customer requests
executed without residual current protection!
It is part of the customer agreement, the safety of the electrical system
regarding the lack of residual current protection through suitable replacement measures
to be manufactured in accordance with the applicable electrical installation regulations.
The legally compliant implementation of these replacement measures
is the sole responsibility of the installer / operator.
