Distribution box plastic mobile Imst BV 7xSSD 2m3G2.5 VG-St VC Ea S

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile Imst BV 7xSSD 2m3G2.5 VG-St VC Ea S
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399103919

Other Technical data

Colour	Black
Width	197 mm
Height	200 mm
Depth	197 mm
Number of socket outlets with protective contact (type F)	7
Cable length	2 m
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

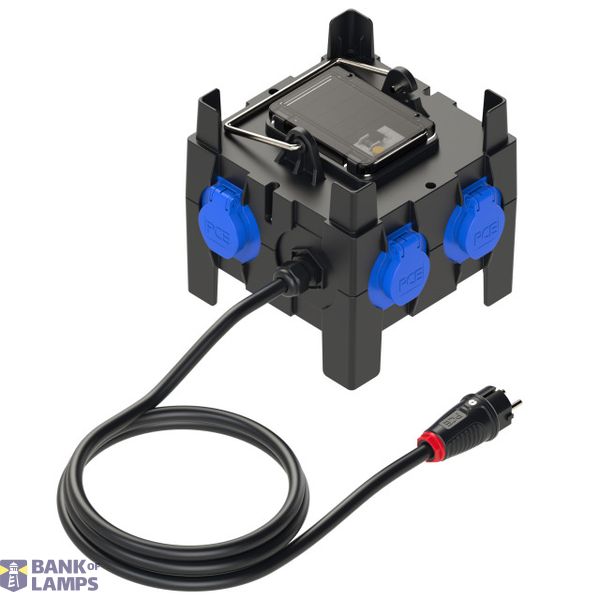

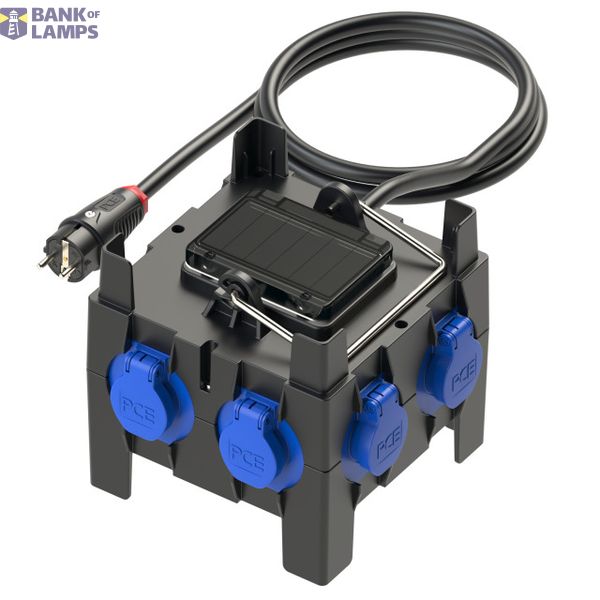

Distribution box, mobile, thermoplastic, series IMST IP44 200x197x197
2m cable H07RN-F 3G2,5mm² with plug (DIN49440) 16A 2p+PE 230V
7xsocket (DIN49440) 16A 250V IP54 not fused
1xRCD 25A/2/0.03A (TYP A 25AT) over all outlets
RCD is brand Eaton
distribution box is ready wired for connection
