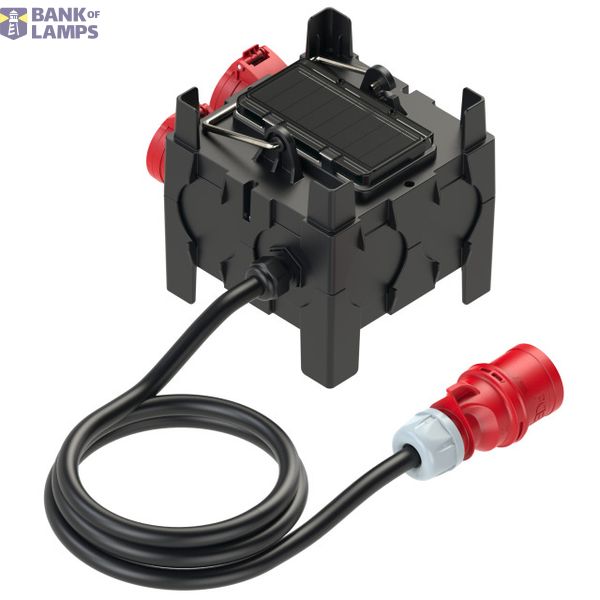

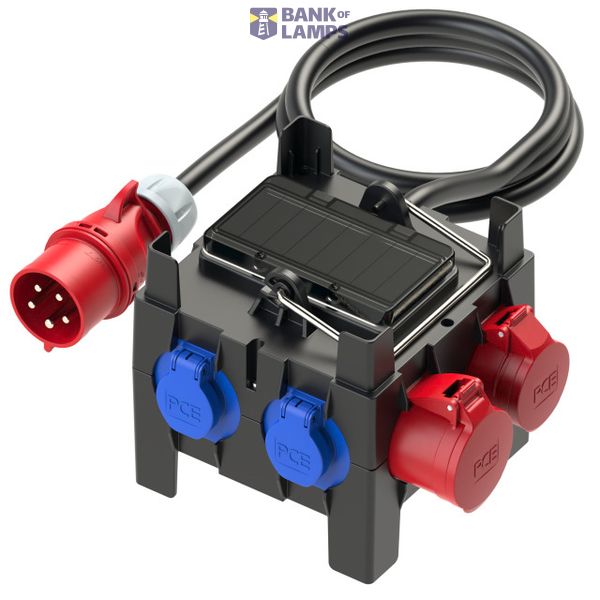

Distribution box plastic mobile IMST BV 32/5 16/5 2xSSD 2m5G4 Ea S

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile IMST BV 32/5 16/5 2xSSD 2m5G4 Ea S
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399017674

Other Technical data

Colour	Black
Width	197 mm
Height	200 mm
Depth	197 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	2
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

Kunstst.-Mobilverteiler Modell IMST IP44 197x197x200 8TE sw
2m Kabel H07RN-F 5G4mm2 schwarz mit Stecker 32A 5p 400V
1xCEE-Steckdose 32A 5p 400V abgesichert d. Vorsicherung Zuleitung
1xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
2xSK-Steckdose 16A 250V IP54 abgesichert ü. 1xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler anschlußfertig verdrahtet
