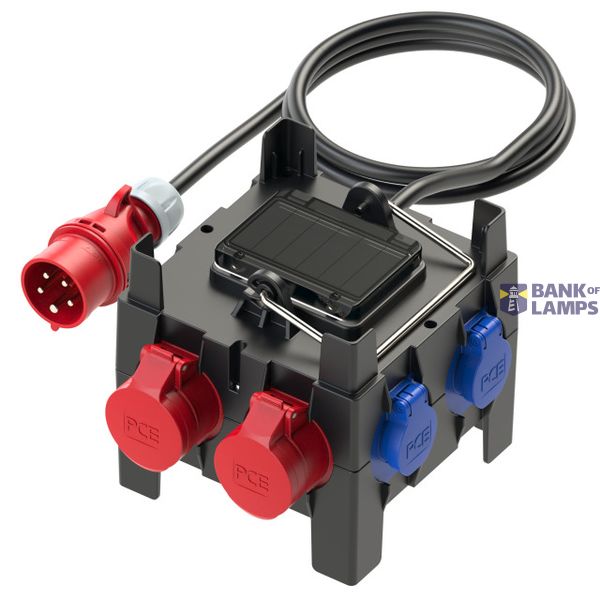

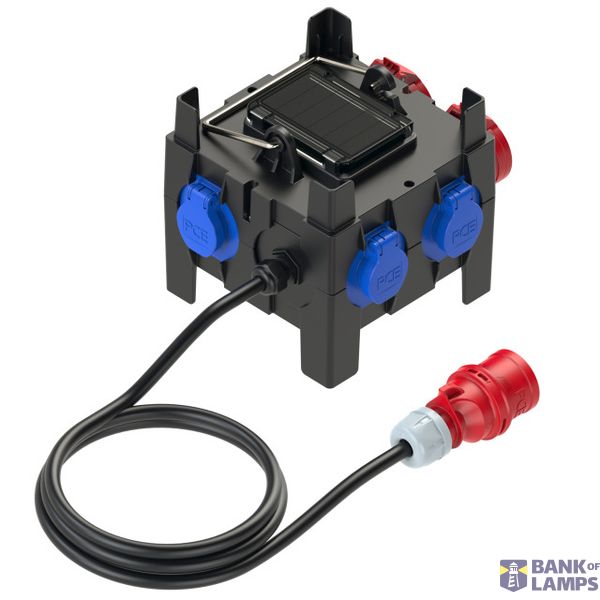

Distribution box plastic mobile IMST BV 2x16/5 5xSSD 2m5G2.5St16 Ea S IP44
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box plastic mobile IMST BV 2x16/5 5xSSD 2m5G2.5St16 Ea S IP44 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Portable |
| Degree of protection (IP) | IP44 |
Packing details
| Packing level 1 | 9003399106118 |
Other Technical data
| Colour | Black |
| Width | 197 mm |
| Height | 200 mm |
| Depth | 197 mm |
| Number of socket outlets with protective contact (type F) | 5 |
| Cable length | 2 m |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| CEE socket outlet 16 A | 2x16A5p400V |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 2 |
| Type of mains connection | CEE 16 A |
Downloads
Description
thermoplastic, mobile distributon box model IMST IP44 197x197x200 6TE sw
2m cable H07RN-F 5x2,5mm2 black with CEE-plug 16A 5p 400V
2xCEE-sockets 16A 5p 400V protected with pre-fuse of supply line
5xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
Note customer specification:
Inc group (s) are additionally secured without selectivity for back-up protection
2m cable H07RN-F 5x2,5mm2 black with CEE-plug 16A 5p 400V
2xCEE-sockets 16A 5p 400V protected with pre-fuse of supply line
5xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
Note customer specification:
Inc group (s) are additionally secured without selectivity for back-up protection
