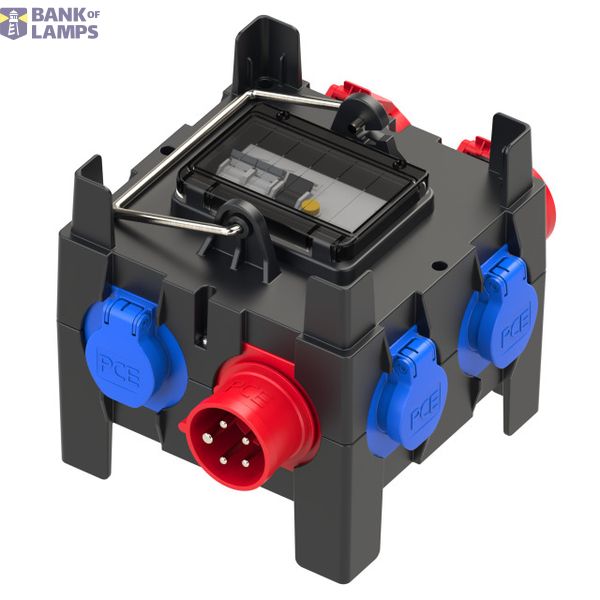

Distribution box plastic mobile IMST BV 2x16/5 4xSSD GS16/5 mFI/LS Ea S IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile IMST BV 2x16/5 4xSSD GS16/5 mFI/LS Ea S IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399106095

Other Technical data

Colour	Black
Width	197 mm
Height	200 mm
Depth	197 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Built-up plug
Number of miniature circuit breakers	2
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

Distribution box, mobile, thermoplastic, series IMST IP44 200x197x197
1xCEE-plug 16A 5p 400V
2xCEE-socket 16A 5p 400V not fused
4xsocket (DIN49440) 16A 250V IP54 fused with 2xMCB 16A 1p C
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCBs and RCD are brand PCE VDE
Distribution box is ready wired for connection
