Distribution box plastic mobile Horn BV 2x16/5 4xSSD GS16/5 Pc oLS KOMPL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile Horn BV 2x16/5 4xSSD GS16/5 Pc oLS KOMPL
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399817571

Other Technical data

Colour	Grey
Width	250 mm
Height	92 mm
Depth	264 mm
Number of socket outlets with protective contact (type F)	4
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Built-up plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

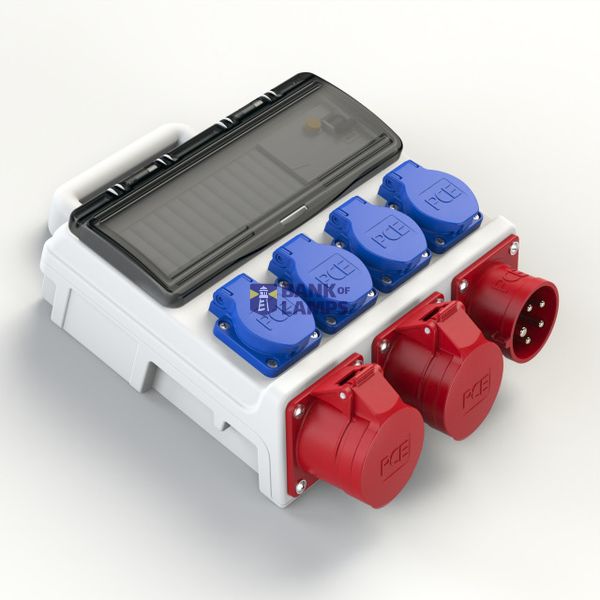

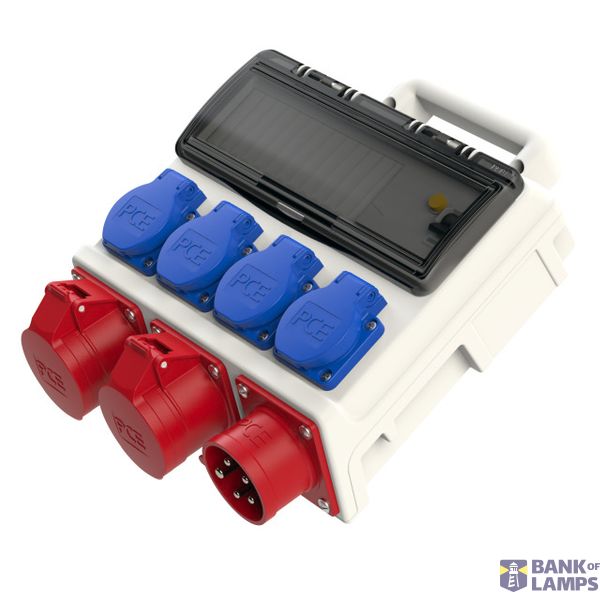

mobile thermoplastic distribution box model HORN IP44 250x264x92
1xCEE-plug 16A 5p 400V
2xCEE-sockets 16A 5p 400V protected with pre-fuse of supply line
4xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
RCD is Eaton Ö+V branded
ditribution box is ready wired for using
