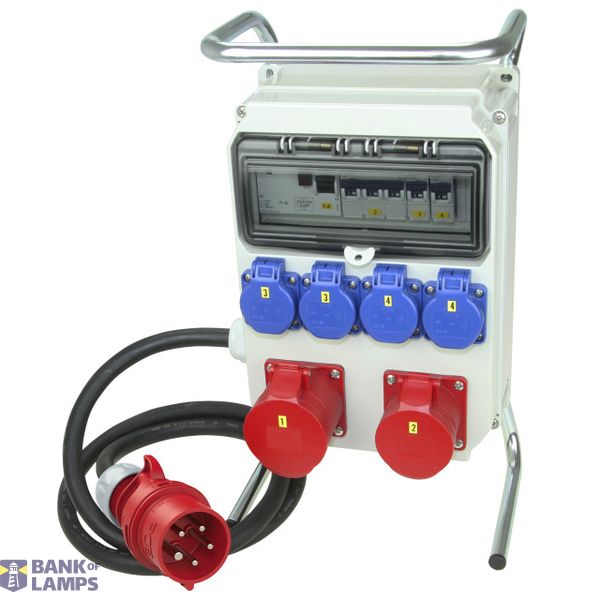

Distribution box plastic mobile ANIF4 MV 2x16/5 4xSSD 2m5G4St32 RBT Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic mobile ANIF4 MV 2x16/5 4xSSD 2m5G4St32 RBT Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399891960

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	114 mm
Number of socket outlets with protective contact (type F)	4
Cable length	2 m
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	6
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

thermoplastic insulated distribution box - series ANIF4 IP54 320x222x114 10TE with rack
2m cable H07RN-F 5G4mm2 black with plug 32A 5p 400V
2xCEE-sockets 16A 5p 400V protected with 2xMCBs 16A 3p C
4x schuko socket 6A 250V IP54 protected with 4xMCBs 16A 1p B
MCBs made by PCE VDE
distribution box is ready wired for using
