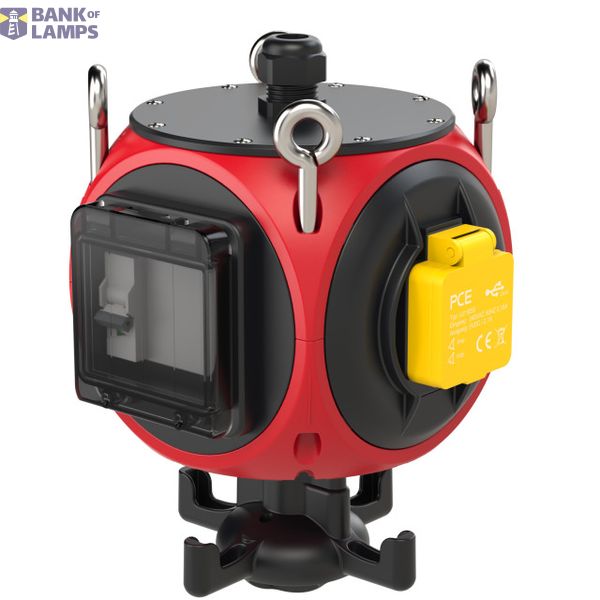

Distribution box plastic hanging Pegasus HV 3xSSD USB M20o 4Ri Ea R

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic hanging Pegasus HV 3xSSD USB M20o 4Ri Ea R
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399530906

Other Technical data

Colour	Red
Width	140 mm
Height	220 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
Other fixtures and/or empty locations	1
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	1

Downloads

Product data sheet

Description

Kunstst.-Hängeverteiler Modell Pegasus IP44 140x140x240 4TE rot
4xRingschraube oben M8x40 verzinkt
1xM20 Verschraubung oben (Kabeldurchm. 10-14mm PG16) schwarz
3xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xAnbaudose zum Laden m. Klappdeckel 2xUSB A RAL1023 (IP20 Klappdeckel offen)
vorgesichert über 1x LS 6A 1p B
Leitungsschutzschalter Fabrikat Eaton ÖVE / VDE
Verteiler auf Vario-Connector 3polig 10qmm verdrahtet
