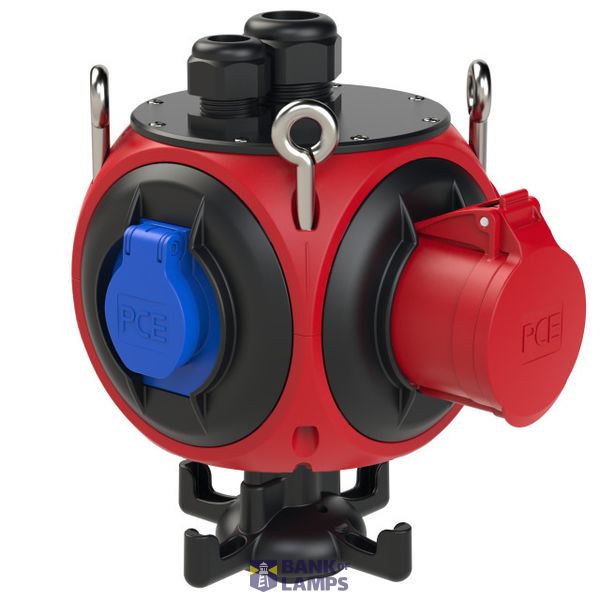

Distribution box plastic hanging Pegasus HV 16/5 2xSSD CATBo M25M20 4Ri R

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic hanging Pegasus HV 16/5 2xSSD CATBo M25M20 4Ri R
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399536373

Other Technical data

Colour	Red
Width	140 mm
Height	220 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Other fixtures and/or empty locations	1
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

Kunstst.-Hängeverteiler Modell Pegasus IP44 140x140x240 0TE rot
4xRingschraube oben M8x40 verzinkt
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) schwarz
1xM20 Verschraubung oben (Kabeldurchm. 6-12mm PG13,5) schw.
1xCEE-Steckdose 16A 5p 400V abgesichert d. Vorsicherung Zuleitung
2xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xBohrung für CAT-Dose 12k452-0e + Montageset 9033-CATmont
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
