Distribution box hanging solid rubber FREISTADT HV 4xSSD VC3x2p IP54

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Distribution box hanging solid rubber FREISTADT HV 4xSSD VC3x2p IP54
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000379
Handling Hangable
Degree of protection (IP) IP44

Packing details

Packing level 1 9003399079016

Other Technical data

Colour Black
Width 129 mm
Height 129 mm
Depth 100 mm
Number of socket outlets with protective contact (type F) 4
Protection None
Housing material Rubber
Earth leakage switch None
Power supply/connection possibility 1 cable (branch line)

Downloads

Description

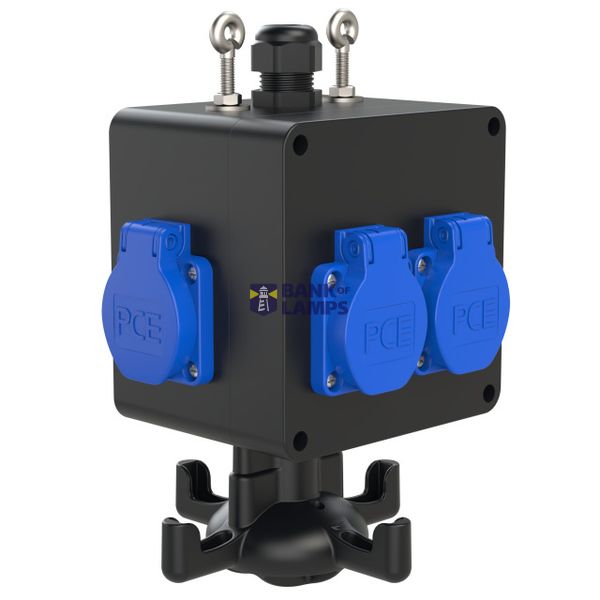

solid rubber distribution box model FREISTADT (NAARN) IP54 129x129x100
with grip hook and suspension eyes
1xM20 cable gland on top (cable diam. 7-14mm PG16) black
4xSK-sockets 16A 250V IP54 unprotected
distribution box is wired on Vario-Connector 3poles 10qmm
