Distribution box hanging solid rubber FREISTADT HV 2x16/5 2xSSD M20o m.Grif IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging solid rubber FREISTADT HV 2x16/5 2xSSD M20o m.Grif IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399057526

Other Technical data

Colour	Black
Width	129 mm
Height	129 mm
Depth	100 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

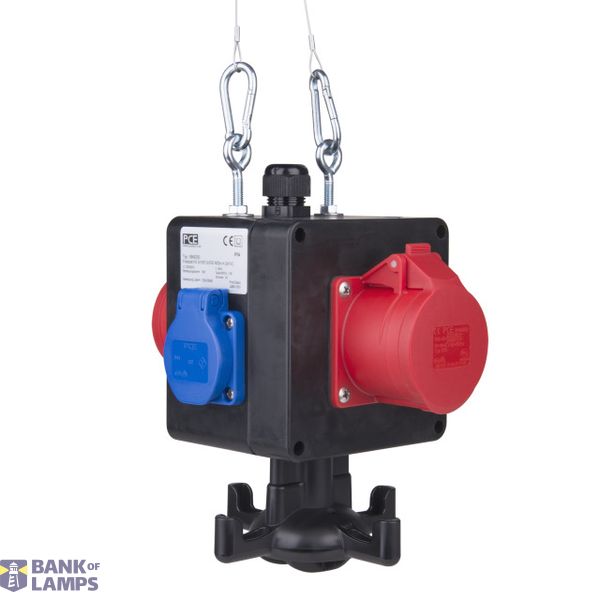

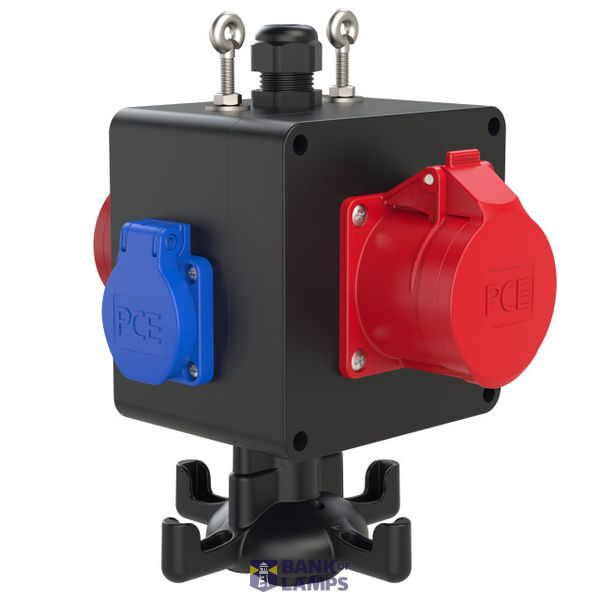

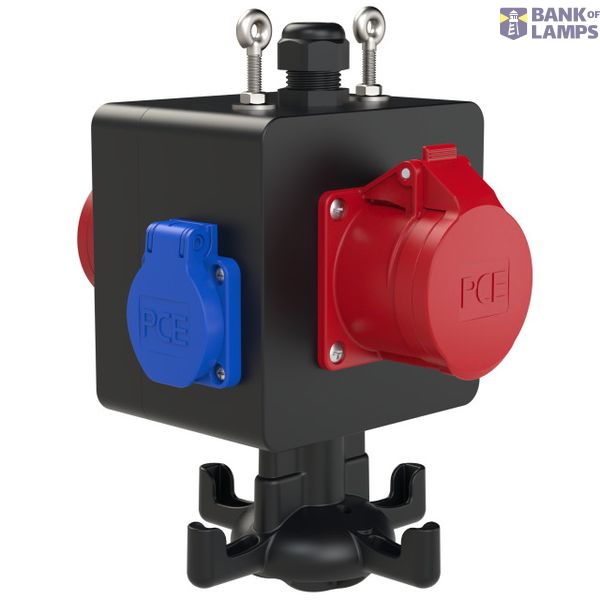

Solid rubber distribution box - Series FREISTADT IP54 with handle-hook and ringbolts
dimensions: 129x129x100mm
entry: 1xM20 cable gland on the top (cable diameter 10-14mm)
outlet: 2xCEE-sockets 16A 5p 400V unprotected
outlet: 2xsockets 16A 250V IP54 unprotected
distribution box is wired on terminals
