Distribution box hanging plastic PEGASUS HV 4xSSD M20o DL 4Ri VC3p R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 4xSSD M20o DL 4Ri VC3p R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696077

Other Technical data

Colour	Red
Width	140 mm
Height	220 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Plastic
Earth leakage switch	None
Other fixtures and/or empty locations	1
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

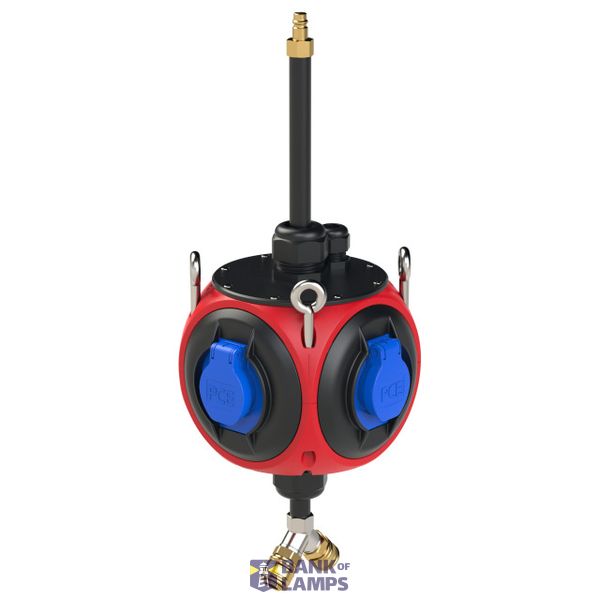

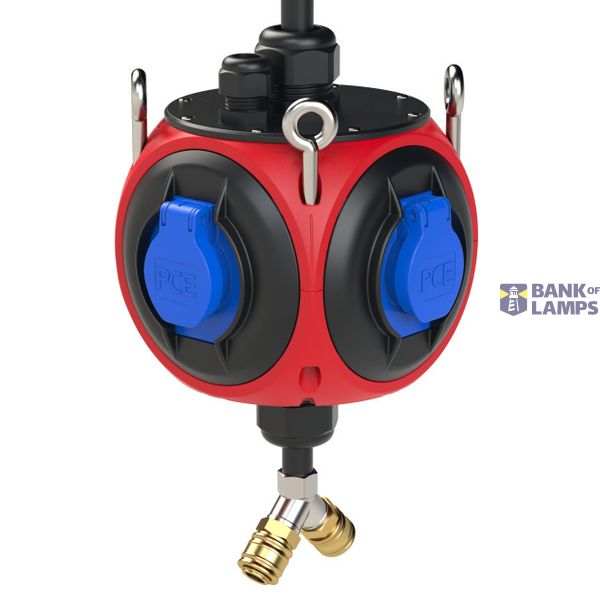

Distribution box with suspension hook, thermoplastic Pegasus IP44
4xring bolt on the top M8x40 galvanized
1xM20 threaded cable gland on the top (cable diameter 10-14mm PG16) black
4xsocket (DIN49440) 16A 250V IP54 not fused
Distribution box is wired up to terminals 3x10sqmm
2xcompressed air coupler 3/8"
