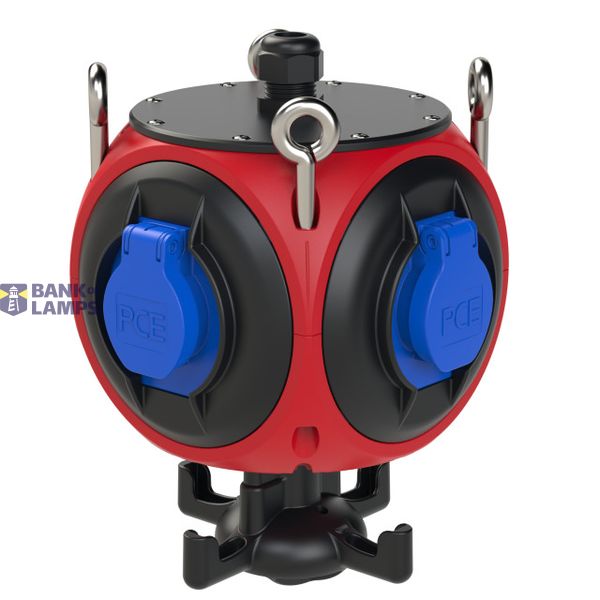

Distribution box hanging plastic PEGASUS HV 4xSSD M20o 4Ri R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 4xSSD M20o 4Ri R IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696060

Other Technical data

Colour	Red
Width	140 mm
Height	220 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Plastic
Earth leakage switch	None
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

thermoplastic mobile distributon box model Pegasus IP44 140x140x240 0TE red
4xring bolts on top M8x40 galvanized
1xM20 cable gland on top (cable diam.: 10-14mm PG16) black
4xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
4xSSD wired on Vario-connector 3poles 10qmm
