Distribution box hanging plastic PEGASUS HV 4x16/5 M25o 4Ri R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 4x16/5 M25o 4Ri R IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696008

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	4x16A5p400V
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

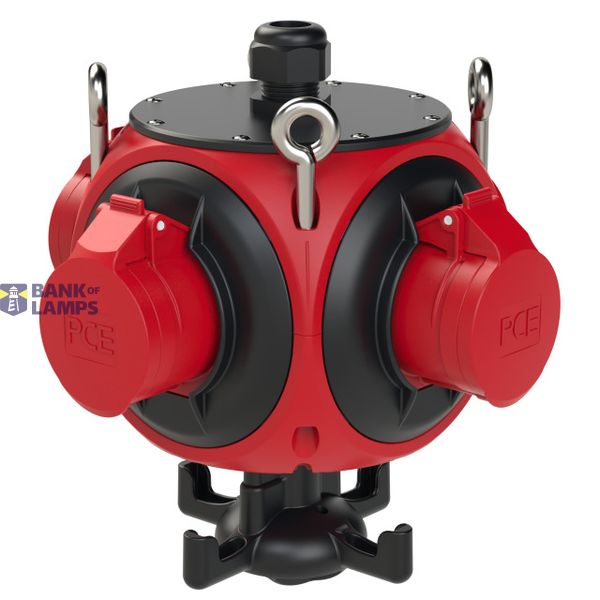

Thermoplastic insulated distribution box PEGASUS with suspension hook IP44 140x140x240 0 modules red
4xCEE 16/5 on vario-connector 5p 10qmm wired
1xM25 cable gland on top (cable diameter 13-18mm PG21) black
4x ring bolt on top M8x40 galvanized
4xCEE-socket 16A 5p 400V not protected
