Distribution box hanging plastic PEGASUS HV 32/5 16/5 2xSSD M32o 4Ri Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 32/5 16/5 2xSSD M32o 4Ri Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696121

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

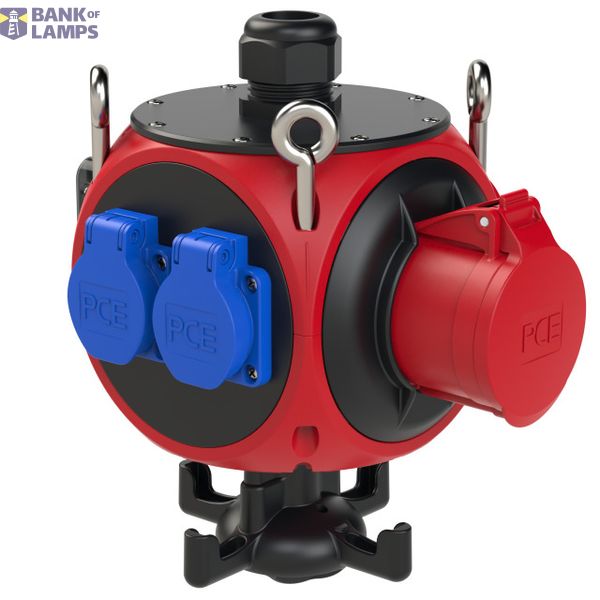

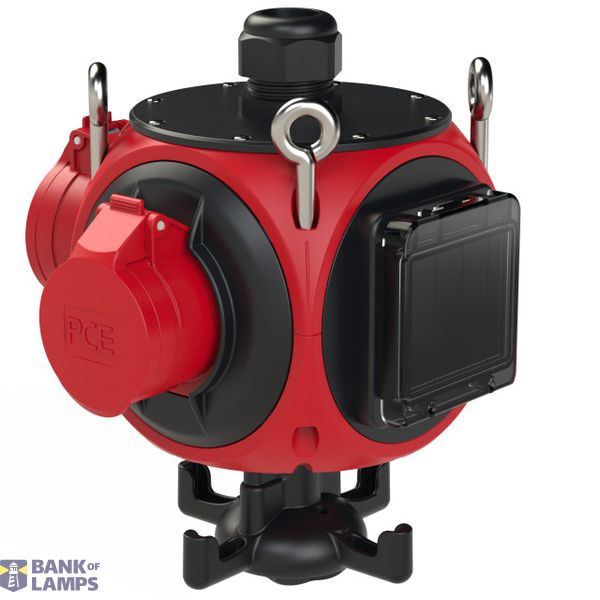

distribution box Modell Pegasus IP44 140x140x240 4TE red
4xring screws on top M8x40 galvanized
1xM32 Verschraubung oben (cable diameter 18-25mm PG29) black
1xCEE-socket 32A 5p 400V protected with pre-fuse of suppy line
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
2xSchuko sockets 16A 250V IP54 fused with 1xMCB 16A 1p C
MCB made by Eaton ÖVE / VDE
distribution box is ready wird on Vario-Connector 5poles 10qmm
Label "Additional protection required by RCD on supply side"
