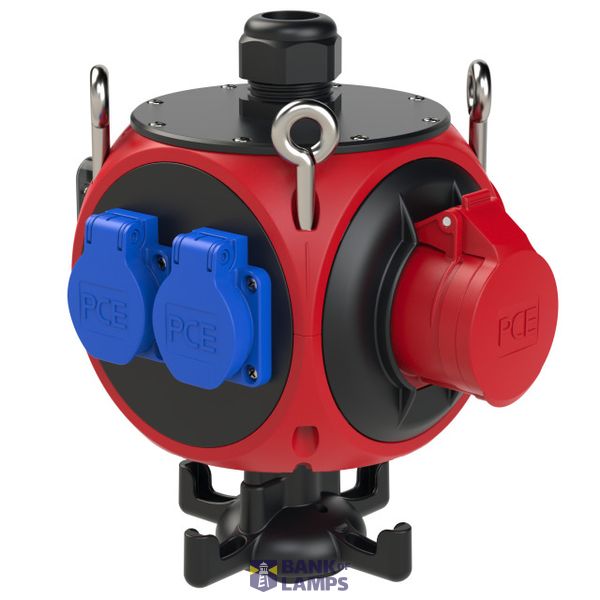

Distribution box hanging plastic PEGASUS HV 2x16/5 2xSSD M32o 4Ri Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 2x16/5 2xSSD M32o 4Ri Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399693021

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

Kunstst.-Hängeverteiler Modell Pegasus IP44 140x140x240 4TE rot
4xRingschraube oben M8x40 verzinkt
1xM32 Verschraubung oben (Kabeldurchm. 18-25mm PG29) schwarz
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
2xSK-Steckdose 16A 250V IP54 abgesichert ü. 1xLS 16A 1p C
Leitungsschutzschalter Fabrikat Eaton ÖVE / VDE
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
Etikett: "Zusatzschutz durch FI-Schutzschalter versorgungsseitig erforderlich!"
