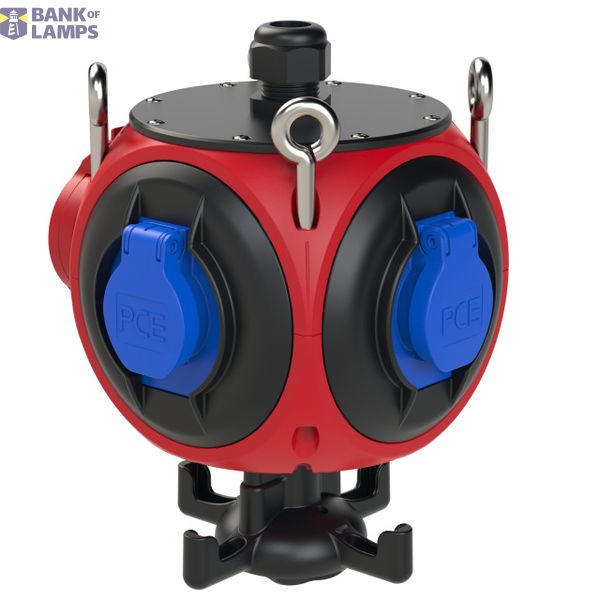

Distribution box hanging plastic PEGASUS HV 16/5 3xSSD M25o 4Ri R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS HV 16/5 3xSSD M25o 4Ri R IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399695995

Other Technical data

Colour	Red
Width	140 mm
Height	220 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

thermoplastic mobile distribution box model Pegasus IP44 140x140x240 0TE red
4xring bolts on top M8x40 galvanized
1xM25 cable gland on top (cable diam.: 13-18mm PG21) black
1xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
3xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
distribution box is ready wired on Vario-connector 5poles 10qmm
