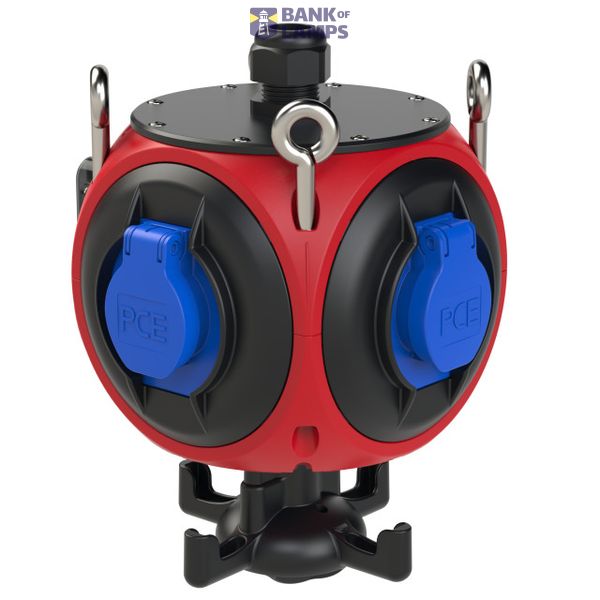

Distribution box hanging plastic PEGASUS BV 3xSSD M25o 4Ri Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS BV 3xSSD M25o 4Ri Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696169

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	3
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

Kunstst.-Hängeverteiler Modell Pegasus IP44 140x140x240 4TE rot
3xSK-Steckdose 16A 250V IP44 ungesichert
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) schwarz
4xRingschraube oben M8x40 verzinkt
1xFI 40A/4/0.03A (TYP A 25AT) über alle Ausgänge
FI-Schutzschalter Marke PCE VDE
