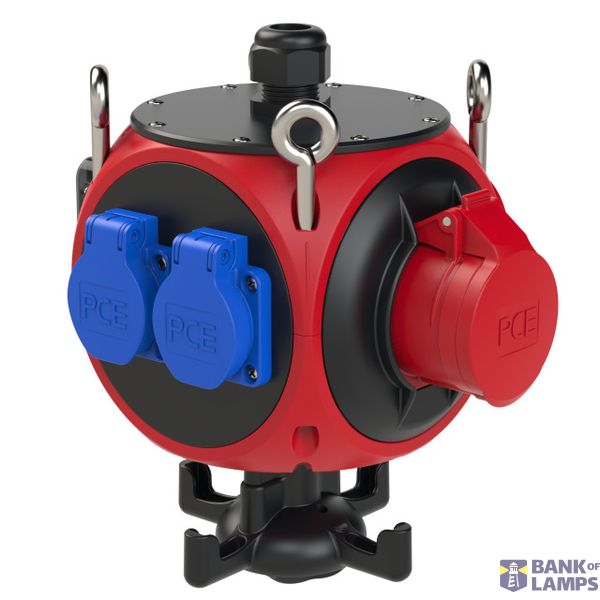

Distribution box hanging plastic PEGASUS BV 2x16/5 2xSSD M25o 4Ri Ea R IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box hanging plastic PEGASUS BV 2x16/5 2xSSD M25o 4Ri Ea R IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Hangable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399696145

Other Technical data

Colour	Red
Width	140 mm
Height	240 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

thermoplastic distribution box, suspended version model Pegasus IP44 140x140x240 4TE red
4x ring bolts on top M8x40 galvanized
1xM25 cable gland on top (cable diam.: 13-18mm PG21) black
2xCEE-sockets 16A 5p 400V protected with pre-fuse of supply line
2xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
RCD is Eaton ÖVE / VDE branded
distribution box is wired on vario-connector 5poles 10qmm
