Distribution box Control, DALI
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box Control, DALI |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 2 |
| Number of outputs | 5 |
| Number of poles | 5 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | Other |
| Type of distributor | Switching distributor |
| Rated current to luminaire | 20 A |
| Mounting possibility | Integrated |
Packing details
| Packing level 1 | 6418677725036 |
| Packing level 2 | 6418677725036 |
| Packing level 3 | 6418677725036 |
Other Technical data
| Width | 139 mm |
| Halogen free | Yes |
| Height | 31 mm |
| Length | 220 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Colour coding/contact insert | Multi-coloured |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description

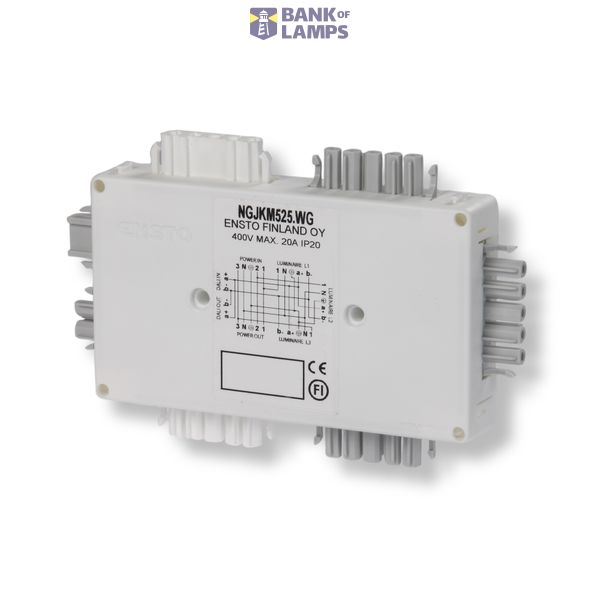

The NGJKM525.WG distribution box is designed for controlling a lighting system via DALI control. The box is equipped with a three-phase continuous supply. Input and output with two-pole couplers for DALI. Power supply and control for three lighting groups with grey five-pole couplers.
