Ensto

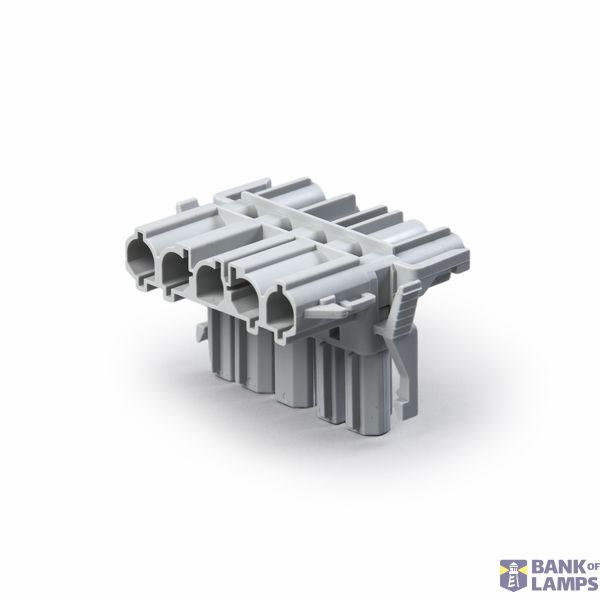

Distribution box 5 poles, 4 outlets, grey

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Distribution box 5 poles, 4 outlets, grey
Brand Ensto
ETIM EC002567
Locking mechanism Integrated in plug-in connector
Rated current 20 A
Rated voltage 250 V
Number of inputs 1
Number of outputs 3
Number of poles 5
Housing material Polyamide (PA)
Surface treatment contacts Silver-plated
Contact material CuZn
Degree of protection (IP) IP20
Rated current to luminaire 20 A

Packing details

Packing level 1 6418677683688
Packing level 2 6418677683688
Packing level 3 6418677683688

Other Technical data

Width 220 mm
Halogen free Yes
Height 139 mm
Length 31 mm
Mechanical coding Yes
Max. continuous temperature resistance contact part 70 °C

Description

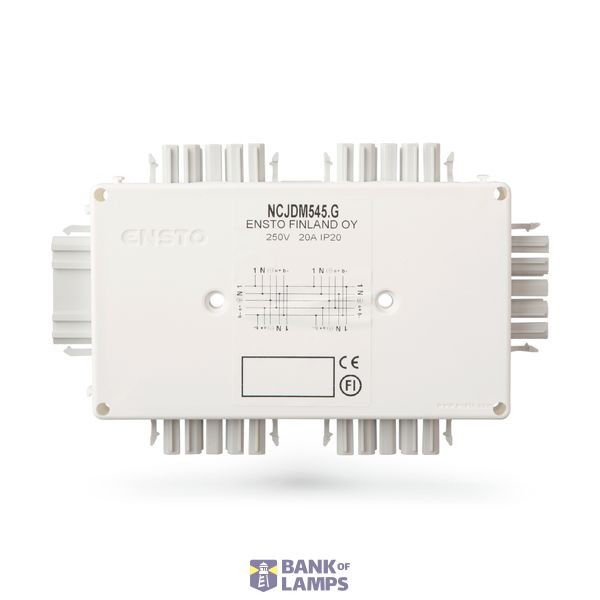

The NCJDM545.G distribution box is designed for the cabling of bus-controlled lighting systems. It has one single-phase inlet and four single-phase outlets with five-pole couplers (L, N, E, a+, b-).
