Distribution box 5 pole white (1,2,E,N,3)
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box 5 pole white (1,2,E,N,3) |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 10 |
| Number of poles | 5 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | None |
| Rated current to luminaire | 20 A |
| Mounting possibility | Integrated |
Packing details
| Packing level 1 | 6418677683770 |
| Packing level 2 | 6418677683770 |
| Packing level 3 | 6418677683770 |

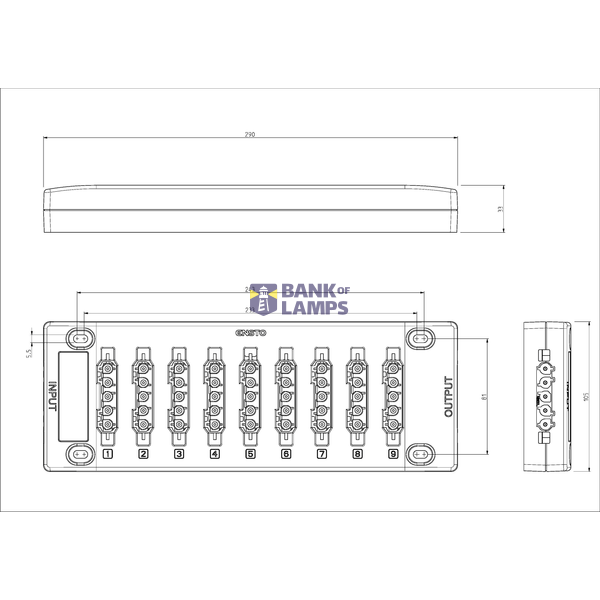

Other Technical data
| Width | 105 mm |
| Halogen free | Yes |
| Height | 33 mm |
| Length | 290 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Colour coding/contact insert | White |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description
The NAJDP592.W distribution box can be installed after a control unit for lighting to distribute 3-phase supply line, for example. The distribution box has a vertical five-pole three-phase inlet and outlet and nine horizontal three-phase outlets with five-pole couplers.
