Distribution box 5 pole, 3x3 outlets

Name: Distribution box 5 pole, 3x3 outlets
Brand: Ensto
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box 5 pole, 3x3 outlets
Brand	Ensto
ETIM	EC002567
Locking mechanism	Integrated in plug-in connector
Rated current	20 A
Rated voltage	250 V
Number of inputs	1
Number of outputs	3
Number of poles	5
Housing material	Polyamide (PA)
Surface treatment contacts	Silver-plated
Contact material	CuZn
Degree of protection (IP)	IP20
Rated current to luminaire	20 A

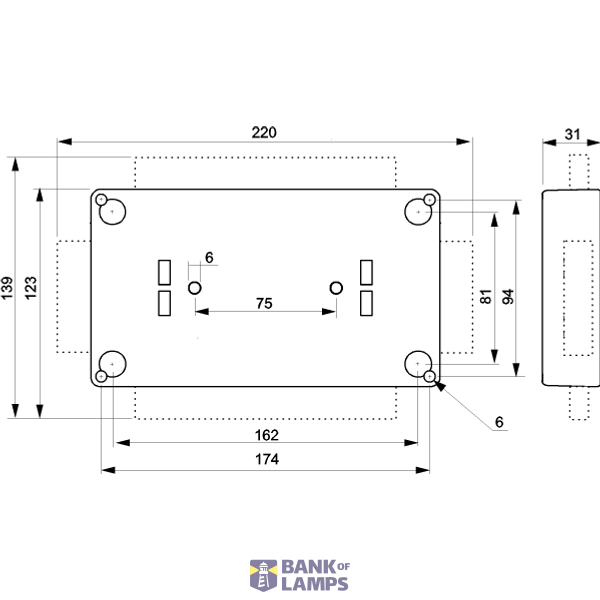

Width	220 mm
Halogen free	Yes
Height	139 mm
Length	31 mm
Mechanical coding	Yes
Max. continuous temperature resistance contact part	70 °C

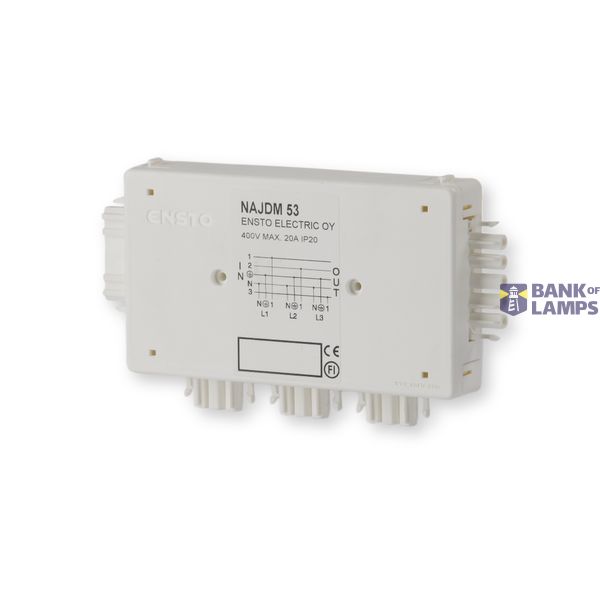

With the NAJDM53 distribution box, a three-phase supply is branched into three single-phase outlets, L1, L2 and L3.
