Distribution box 3 pole, 6x1 outlets
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box 3 pole, 6x1 outlets |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 7 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | None |
| Rated current to luminaire | 20 A |
| Mounting possibility | Integrated |
Packing details
| Packing level 1 | 6418677706486 |
| Packing level 2 | 6418677706486 |
| Packing level 3 | 6418677706486 |
Other Technical data

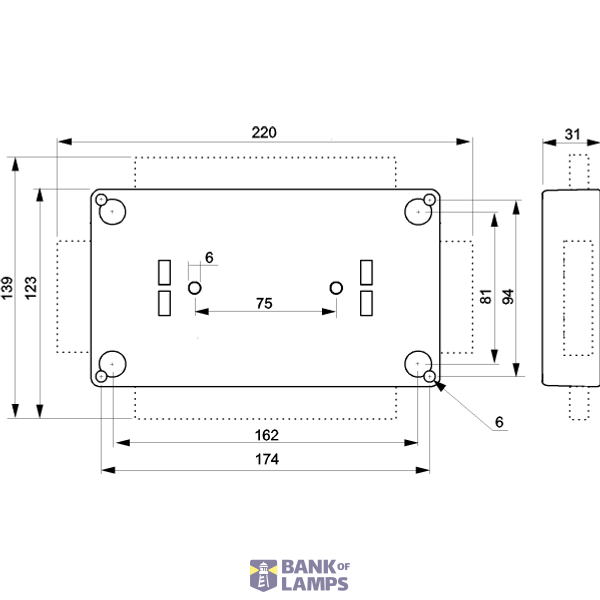

| Width | 139 mm |
| Halogen free | Yes |
| Height | 31 mm |
| Length | 220 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Colour coding/contact insert | White |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description

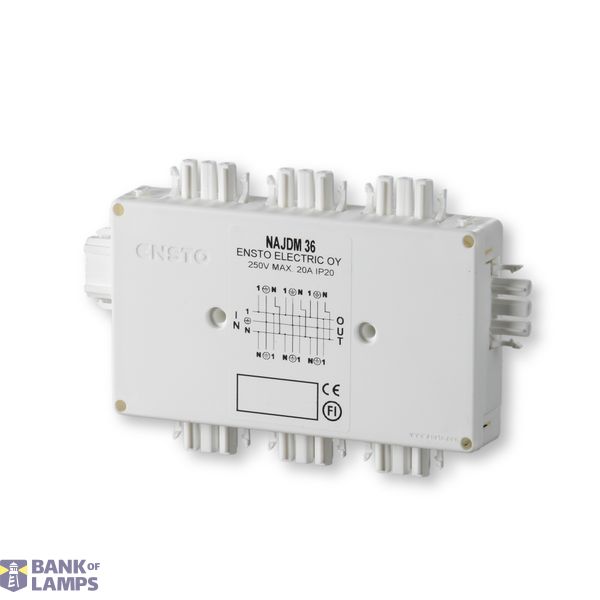

The NAJDM36 distribution box directs a single-phase supply to six single-phase outputs.
