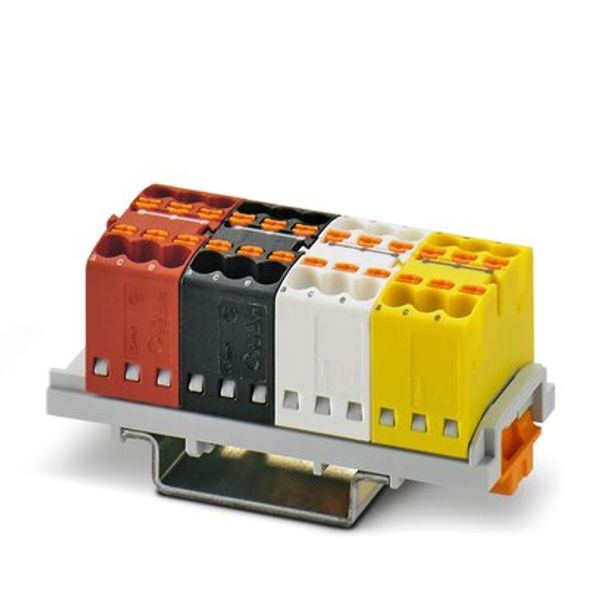

PTFIX 1,5-KNX-NS35 - Distribution block
In stock: No
Vendor stock: No
Minimal order quantity: 10
Price (excl. VAT):
7,66 €
per pcs
Subtotal: 76,60 €
MOQ: 10
EAN: 4063151230456
MPN: 1187192
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PTFIX 1,5-KNX-NS35 - Distribution block |
| Brand | Phoenix Contact |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin | PL |
| Harmonized System Code | 8536 9010 00 |
| Mounting method | DIN rail (top hat rail) 15 mm |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Other |
| Type of electrical connection 2 | Other |
| Number of levels | 0 |
| Number of clamp positions per level | 0 |
| Connectable conductor cross section solid-core | 0.14-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.14-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-1.5 mm² |
| Rated current In | 17.5 A |
Packing details
| Packing level 1 | 4063151230456, 4063151230456 |
Other Technical data
| Width | 21.6 mm |
| Height | 58.1 mm |
| Depth | 24.7 mm |
| Operating temperature | -60-105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Internally connected stages | No |
| Material insulation body | Other |
Description
Distribution block, for KNX bus in building installation, individual block is bridged internally, color in accordance with EIB cable coding, arrangement: inline, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: NS 15, NS 35/7,5, NS 35/15
