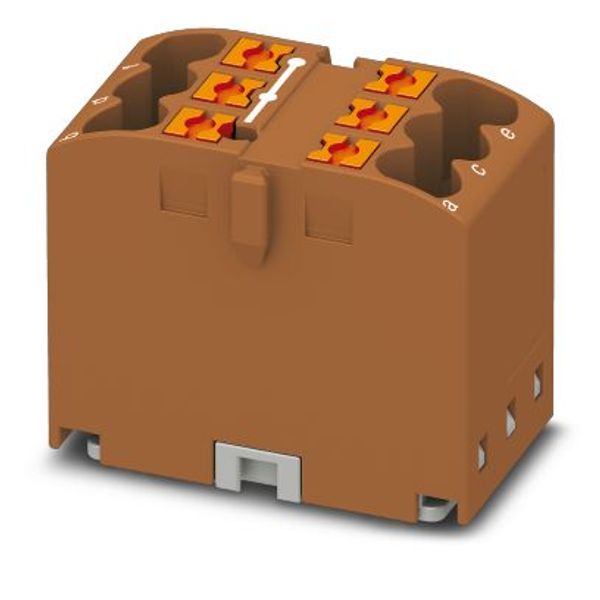

PTFIX 6X2,5-G BN - Distribution block image 1
PTFIX 6X2,5-G BN - Distribution block image 2
PTFIX 6X2,5-G BN - Distribution block image 3
PTFIX 6X2,5-G BN - Distribution block thumbnail 1
PTFIX 6X2,5-G BN - Distribution block thumbnail 2
PTFIX 6X2,5-G BN - Distribution block thumbnail 3
Phoenix Contact

PTFIX 6X2,5-G BN - Distribution block

Order only Minimal order quantity: 10
Price (excl. VAT):
2,59 € per pcs
This price is valid until 24.12.25
Subtotal: 25,90 € MOQ: 10
EAN: 4055626392745
MPN: 3273404
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PTFIX 6X2,5-G BN - Distribution block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin PL
Harmonized System Code 8536 9010 00
Mounting method Other
Rated voltage 450 V
Type of electrical connection 1 Other
Type of electrical connection 2 Other
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.14-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.14-2.5 mm²
Rated current In 24 A

Packing details

Packing level 1 4055626392745, 4055626392745

Other Technical data

Colour Brown
Width 16 mm
Height 28.6 mm
Depth 21.7 mm
Operating temperature -35-105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Internally connected stages No
Material insulation body Other

Description

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Basic terminal block, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, cross section: 0.14 mm² - 4 mm², mounting type: adhesive, color: brown

Accessories

ISH 2,5/1,0 - Insulating sleeve
Order only
Phoenix Contact
ISH 2,5/1,0 - Insulating sleeve
0,252 € per pcs
This price is valid until 24.12.25
Subtotal: 12,60 € MOQ: 50
EAN: 4017918090401
MPN: 3002869
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH RD - Insulating sleeve
Order only
Phoenix Contact
MPS-IH RD - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098155
MPN: 0201676
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH YE - Insulating sleeve
Order only
Phoenix Contact
MPS-IH YE - Insulating sleeve
0,26 € per pcs
This price is valid until 24.12.25
Subtotal: 2,60 € MOQ: 10
EAN: 4017918098322
MPN: 0201692
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH BK - Insulating sleeve
Order only
Phoenix Contact
MPS-IH BK - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098544
MPN: 0201731
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH GN - Insulating sleeve
Order only
Phoenix Contact
MPS-IH GN - Insulating sleeve
0,257 € per pcs
This price is valid until 24.12.25
Subtotal: 2,57 € MOQ: 10
EAN: 4017918098636
MPN: 0201702
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH WH - Insulating sleeve
Order only
Phoenix Contact
MPS-IH WH - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098773
MPN: 0201663
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-MT - Test plug
Order only
Phoenix Contact
MPS-MT - Test plug
1,27 € per pcs
This price is valid until 24.12.25
Subtotal: 12,70 € MOQ: 10
EAN: 4017918098803
MPN: 0201744
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH BU - Insulating sleeve
Order only
Phoenix Contact
MPS-IH BU - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098896
MPN: 0201689
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH GY - Insulating sleeve
Order only
Phoenix Contact
MPS-IH GY - Insulating sleeve
0,257 € per pcs
This price is valid until 24.12.25
Subtotal: 2,57 € MOQ: 10
EAN: 4017918099107
MPN: 0201728
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ISH 2,5/0,5 - Insulating sleeve
Order only
Phoenix Contact
ISH 2,5/0,5 - Insulating sleeve
0,254 € per pcs
This price is valid until 24.12.25
Subtotal: 12,70 € MOQ: 50
EAN: 4017918104405
MPN: 3002856
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
