Distribution block 3 phase, 6x1 OUTPUT, BLACK
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution block 3 phase, 6x1 OUTPUT, BLACK |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 7 |
| Number of poles | 5 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Pole codification | 3, N, PE, 2, 1 |
| Type of integrated switching | None |
| Type of distributor | Distribution terminal block |
| Mounting possibility | With separate adapter |
Packing details
| Packing level 1 | 6418677724138 |
| Packing level 2 | 6418677724138 |
| Packing level 3 | 6418677724138 |
| Packing level 4 | 6418677724138 |
Other Technical data
| Width | 51 mm |
| Halogen free | Yes |
| Height | 100 mm |
| Length | 45 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Colour coding/contact insert | Black |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description

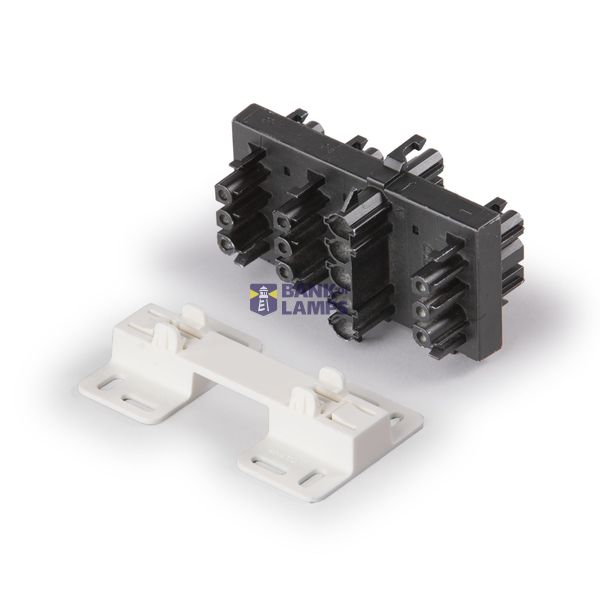

With distribution block NAD56.B a 3 phase supply is branched into 6 single phase outputs. 3 phase supply can be continued through the block to e.g. the following distribution block.The distribution block can be fixed to e.g. a mounting plate with the mounting foot supplied with the distribution block using 4 screws, max. � 4.2 mm. The distribution block does also partly fit into a min. 70 mm wide lighting track. In this case no separate mounting foot is needed.
