Distribution block 1 phase, 7 OUTPUTS, BLACK
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution block 1 phase, 7 OUTPUTS, BLACK |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 7 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
| Type of integrated switching | None |
| Type of distributor | Distribution terminal block |
| Mounting possibility | With separate adapter |
Packing details
| Packing level 1 | 6418677724169 |
| Packing level 2 | 6418677724169 |
Other Technical data
| Width | 51 mm |
| Halogen free | Yes |
| Height | 100 mm |
| Length | 45 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Colour coding/contact insert | Black |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description

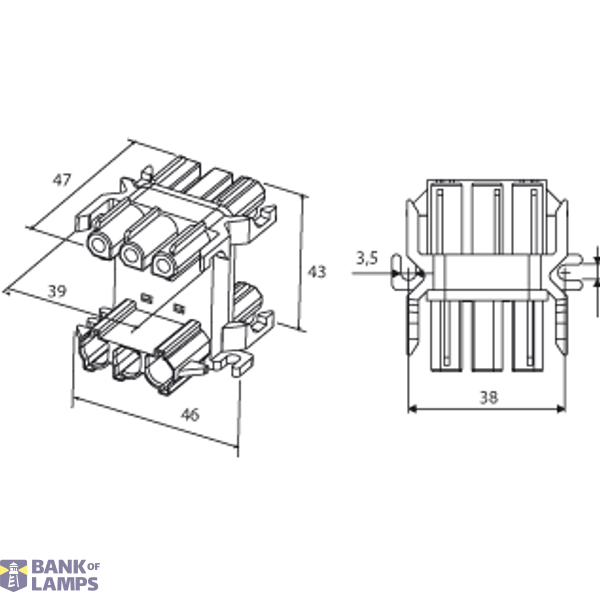

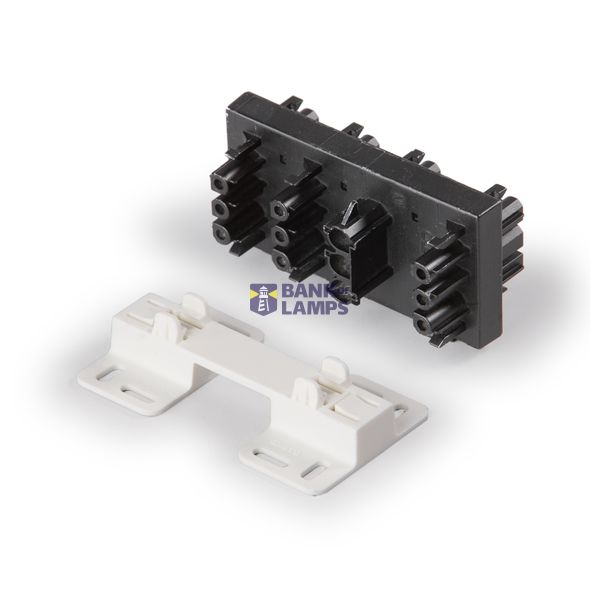

Distribution block NAD36.B has one ingoing supply to which a socket is being connected and seven outgoing outputs to which plugs are being connected. Couplers that are to be connected are shown in the connection diagram.The distribution block can be fixed to e.g. a mounting plate with the mounting foot supplied with the distribution block using 4 screws, max. � 4.2 mm. The distribution block does also partly fit into a min. 70 mm wide lighting track. In this case no separate mounting foot is
