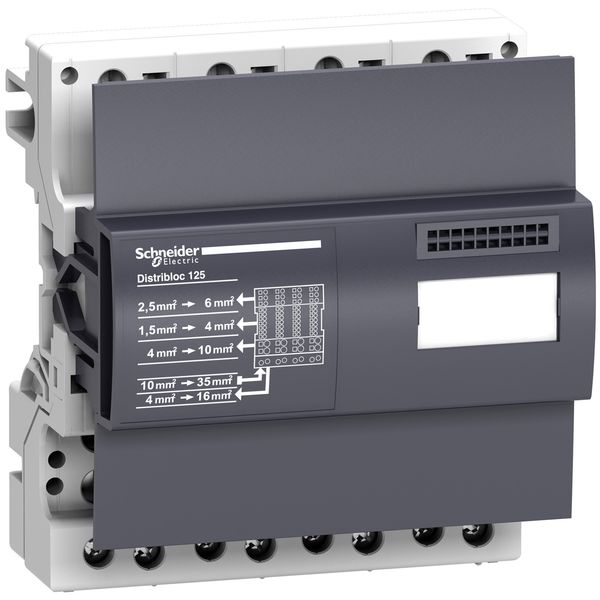

DISTRIBLOC 125

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 3303430040453

MPN: 04045

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DISTRIBLOC 125
Brand	Schneider Electric
Categories	Busbar Systems and Accessories
Country of origin	FR
Harmonized System Code	8536 9010 00
Nominal current	125 A
Number of poles	4

Packing details

Packing level 1

3303430040453

Other Technical data

Mounting method	DIN-rail/screw
Width	108 mm
Height	127 mm
Depth	48 mm
Connection type	Screwless
Number of inputs	0
Number of outputs	0
Contact safe	Yes

Description

Linergy DX distribution block for Acti9. It is compatibility with spacial enclosures. The rated operational voltage is 690V AC. The rated operational current is 160A. It provides IPxx B degree of protection. It provides 4 poles with anthracite grey (RAL 7016) surface treatment. It could be connected on the tunnel type terminal and spring terminal by DIN rail mounting support. It is suitbale for 6 total number of 18 mm modules and 3 pollution degree. It provides 960 °C resistance to incandescent wire conforming to IEC 60695-2-11. It is certified by ASEFA. It is compliant with both IEC 61439-1, IEC 61439-2 and IEC 60947-7-1. It is also compliant with Green Premium (RoHS/REACH).
