DISPLAY Displayleuchte 13W 1150lm 3000K 230V LED IP20 silver
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DISPLAY Displayleuchte 13W 1150lm 3000K 230V LED IP20 silver |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4231 00 |
| ETIM | EC001744 |

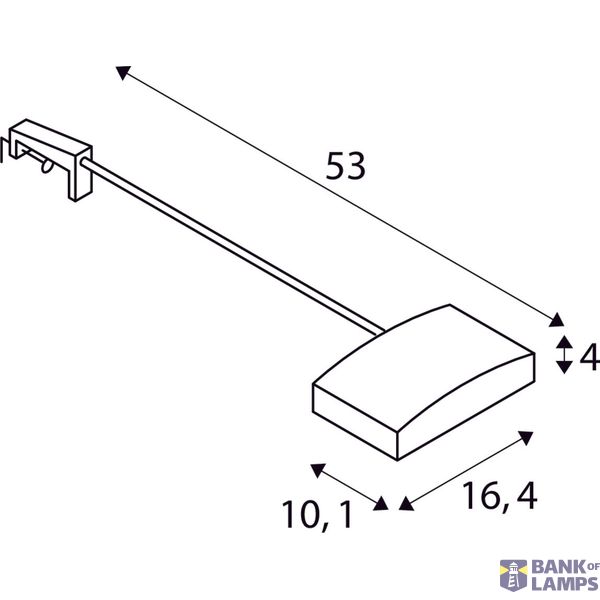

| Width | 164 mm |
| Colour rendering index CRI | 80-89 |
| Length | 530 mm |
| Height/depth | 40 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 200-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Open beam/diffuse |
| Colour temperature | 3000 K |
| Max. system power | 13 W |
| Rated luminous flux according to IEC 62722-2-1 | 1150 lm |
| Luminaire efficacy | 88.4615 lm/W |
Packing details
| Packing level 1 | 4024163236492 |
Other Technical data
| Protection class | II |
| Outer diameter | 0 mm |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Colour housing | Silver |
| Surface protection | Lacquered |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 12 W |
| Type of control gear | Not required |
| Suitable for wall mounting | Yes |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | Yes |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | Yes |
| IFTTT support available | No |
| Luminous flux | 1150 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Other |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description

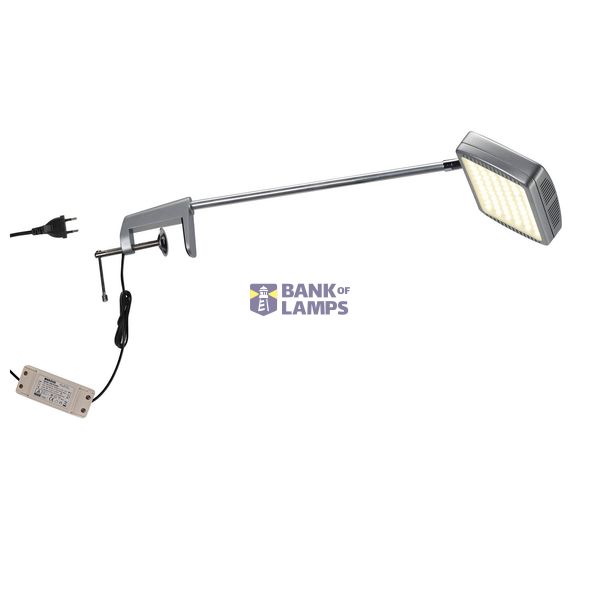

This rotating and swivelling high-voltage DISPLAY display light has several powerful LEDs and is available in two light colours. The light, which is made of aluminium and plastic, is mounted using the display clamp supplied. The electrical connection is provided by the supply cable featuring a mains plug and integrated driver, which can be connected directly to a 230V mains power supply.
