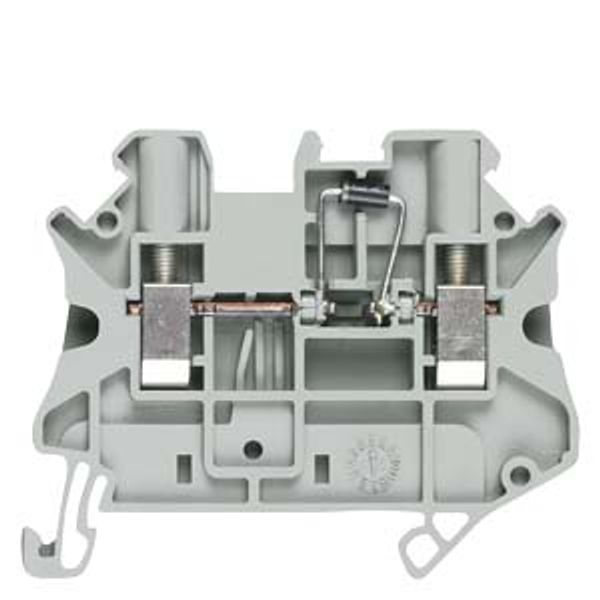

Terminal, screw terminal, isolating terminal with diode, 4 mm², gray Terminal block connection technology for

In stock: No Vendor stock: Yes Minimal order quantity: 50

Price (excl. VAT):

2,13 € per pcs

This price is valid until 31.12.25

Subtotal: 106,50 € MOQ: 50

EAN: 4001869403113

MPN: 8WH1000-6KG00

Package: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Terminal, screw terminal, isolating terminal with diode, 4 mm², gray Terminal block connection technology for
Brand	Siemens
Categories	Cable caps and connectors, clamps
Country of origin	PL
Harmonized System Code	8536 9010 00
Colour	Grey
Width	6.15 mm
Height	57.8 mm
Depth	47.5 mm
Rated voltage	800 V
Operating temperature	-165--25 °C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	No
Connectable conductor cross section solid-core	0.14-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-4 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-6 mm²
Connectable conductor cross section multi-wired	0.14-1.5 mm²
Material insulation body	Other
Rated current In	0.5 A
Explosion-tested version 'Ex e'	No

Packing level 1

4001869403113, 4001869403113

Terminal, screw terminal, isolating terminal with diode, 4 mm², gray
