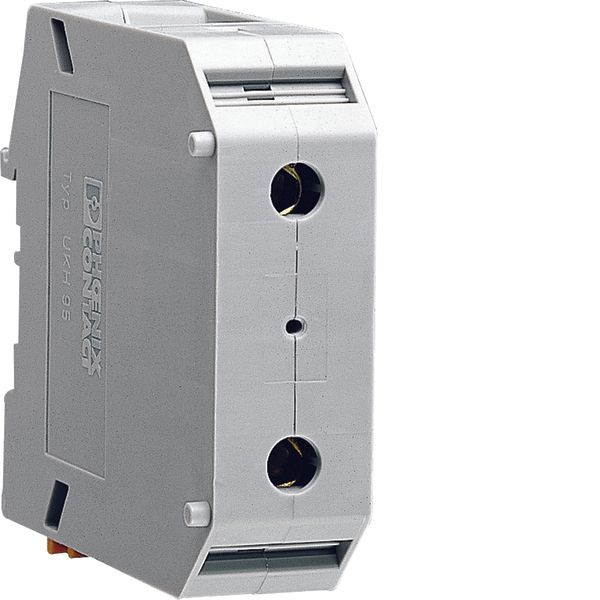

DIN rail terminal 25-95mm² image 1
Hager

DIN rail terminal 25-95mm²

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
29,872 € per pcs
This price is valid until 31.12.25
EAN: 3250613880347
MPN: KR95P
Package: 1
Pallet: 600
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name DIN rail terminal 25-95mm²
Brand Hager
Categories DIN Rail Terminal Blocks
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 230 V
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Rated current In 232 A

Packing details

Packing level 1 3250613880347, 3250613880347
Packing level 2 3250613880347

Other Technical data

Colour Grey
Width 25 mm
Height 97.6 mm
Depth 82.8 mm
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

DIN rail terminal 95-240mm², gray
