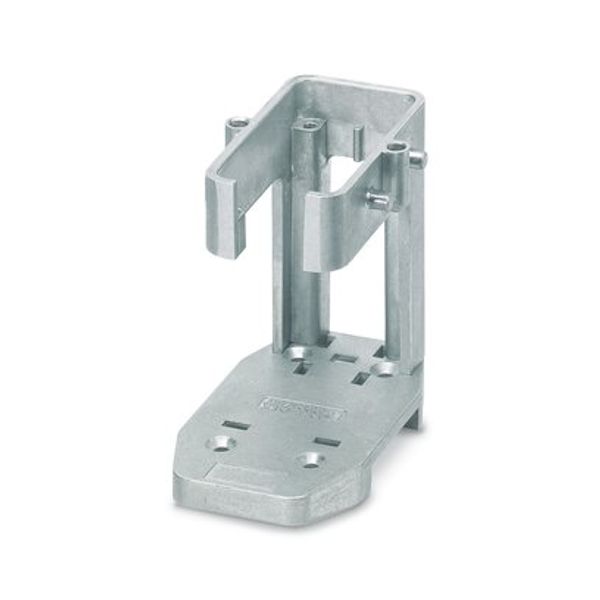

HC-CIF-B10-BFFD-FH-AL - DIN rail mounting frame

Order only

Price (excl. VAT):

13,18 € per pcs

This price is valid until 24.12.26

EAN: 4046356681919

MPN: 1404219

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-CIF-B10-BFFD-FH-AL - DIN rail mounting frame
Brand	Phoenix Contact
Categories	Inline Cable Connectors
Country of origin*	PL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Width	56 mm
Height	85 mm
Depth	93.5 mm
Material assembly frame	Other
Type of fixing element	Rail bracket
Mounting type of the fixing element	Support rail
Fixing direction	Swivelling
Type of mounting rail	DIN rail (top hat rail)

Packing details

Packing level 1

4046356681919, 4046356681919

Other Technical data

Inflammability class of insulation material according to with UL94	Other
With PE-connection	No

Description

HEAVYCON DIN rail mounting frame, lower part for double locking latch, for sleeve housing with double locking latch or HC-CIF-..HFFD.., for type B10 contact inserts, for NS35/7,5 DIN rails
