DIMLITE pro TEC-GP WH IP54 - TECTON module IP54 with DIMLITE pro MAX

Name: DIMLITE pro TEC-GP WH IP54 - TECTON module IP54 with DIMLITE pro MAX
Brand: Zumtobel
Price: 645.640 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

645,64 €

This price is valid until 24.12.25

EAN: 9010299738875

MPN: 22171789

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DIMLITE pro TEC-GP WH IP54 - TECTON module IP54 with DIMLITE pro MAX
Brand	Zumtobel
Categories	Luminaire accessories
Country of origin	SK
Harmonized System Code	8517 6200 00
Colour	White
Type of accessory/spare part	Movement sensor

Packing details

Packing level 1

9010299738875, 9010299738875

Downloads

Declaration DOC CE (Declaration of conformity CE) Declaration RoHS Sales brochure

Description

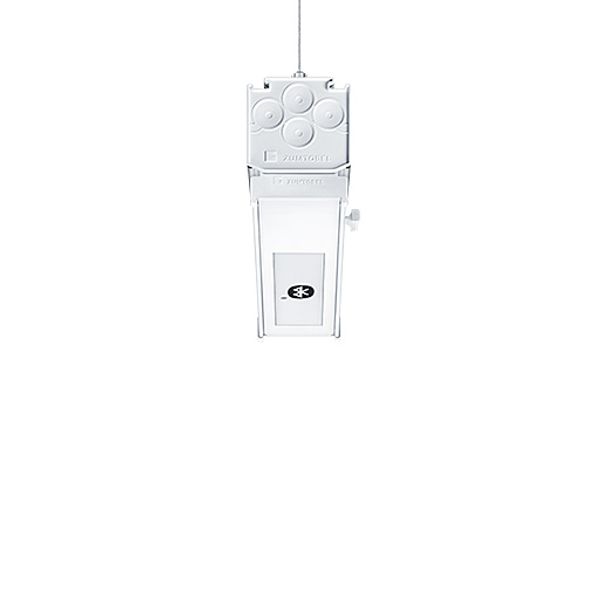

DIMLITE pro TECTON TECTON module with integrated DIMLITE pro MAX for the TECTON continuous-row lighting system. TECTON module with IP54 protection rating; tool-free mechanical and electrical installation on the trunking rail via two side levers; corrosion-protected trunking rail adapter made of roll-formed, hot-dip galvanised sheet steel with zinc-magnesium coating and polyester lacquer finish; housing colour white. DIMLITE pro MAX interface DALI / DALI-2. DALI-2 certified control system configurable via mobile app. Permissible radio distance of mobile device to control unit up to 15m, maximum of 25 luminaires can be controlled. No emergency lighting functionality. Functions: Individual addressing / grouping / presence-dependent control / scene formation of TECTON luminaires possible. Only one DIMLITE pro MAX module may be operated per DALI circuit/TECTON rail; the combination with TECTON TT-D1/D2 enables the separation of the complete rail into individual sections on the DALI side. Radio definition: Bluetooth® 4.x, radio frequency: 2.4...2.483 GHz, radio transmission power +4dBm. Dimensions: 248 x 72 x 85mm. Weight: 0.4kg
