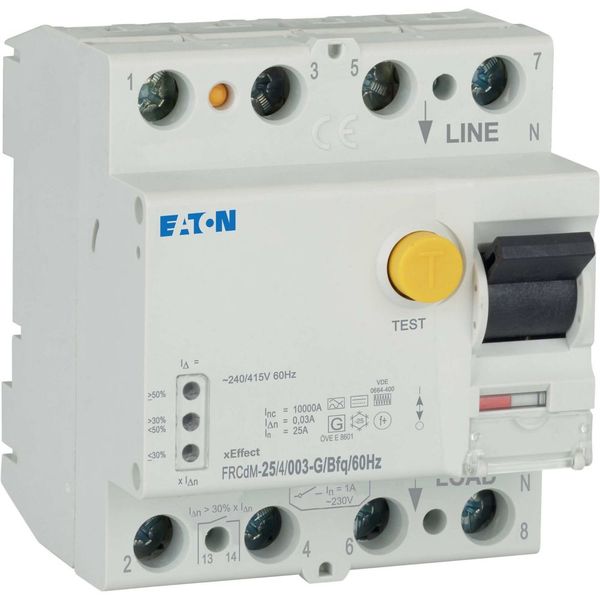

Digital residual current circuit-breaker, all-current sensitive, 25 A, 4p, 30 mA, type G/BFQ, 60 Hz
Order only
Price (excl. VAT):
434,24 €
EAN: 4015081755745
MPN: 180420
Package: 1
Box: 30
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Digital residual current circuit-breaker, all-current sensitive, 25 A, 4p, 30 mA, type G/BFQ, 60 Hz |
| Brand | EATON |
| Categories |
RCCB - (Residual Current Breakers)
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2010 00 |
| Voltage type | AC |
| Rated current | 25 A |
| Rated voltage | 415 V |
| Rated insulation voltage Ui | 440 V |
| Number of poles | 4 |
| Rated fault current | 0.03 A |
| Leakage current type | B |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 3 kA |
| Short-time delayed tripping | Yes |
| Frequency | 60 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 4015081755745 |
| Packing level 2 | 9008790721892 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 70.5 mm |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 1.5-35 mm² |
| Connectable conductor cross section multi-wired | 1.5-16 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -25-60 °C |
| Additional equipment possible | Yes |
Description
AC/DC sensitive residual current circuit-breaker independent of grid voltage for fault and additional protection with additional digital functions; 25 A; 4p; 30 mA; type G/BFQ; 60Hz
