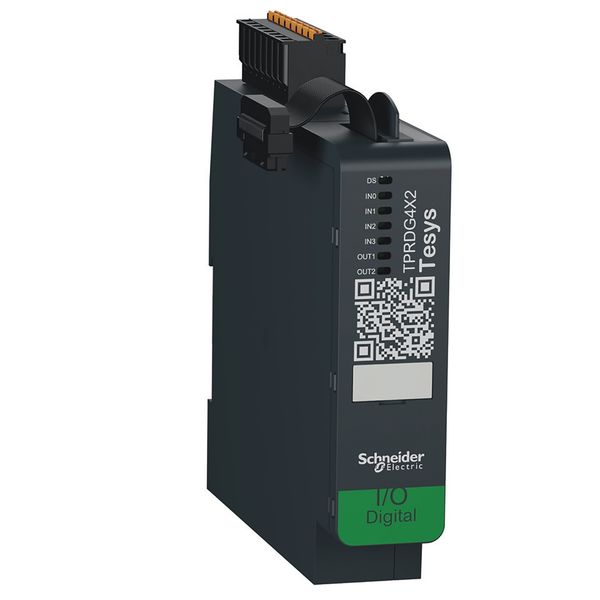

Digital IO module, TeSys island, 4 inputs, 2 outputs
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
100,90 €
EAN: 3606489832896
MPN: TPRDG4X2
Package: 1
Box: 16
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Digital IO module, TeSys island, 4 inputs, 2 outputs |
| Brand | Schneider Electric |
| Categories |
Industrial Fieldbus Modules
|
| Country of origin | ID |
| Harmonized System Code | 8538 9099 00 |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Time delay at signal exchange | 5 ms |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Output current | 0.5 A |
| Type of digital output | Other |
| Type of electric connection | Plug-in connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 20.4-28.8 V |
| Permitted voltage at output | 0-28.8 V |
| Permitted voltage at input | 0-28.8 V |
| Type of output voltage | DC |
Packing details
| Packing level 1 | 3606489832896 |
| Packing level 2 | 3606489832894 |
Other Technical data
| Width | 25 mm |
| Height | 118 mm |
| Depth | 114 mm |
| Input current at signal 1 | 7 mA |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 2 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Short-circuit protection, outputs available | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | Yes |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Digital inputs configurable | Yes |
| Digital outputs configurable | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Declaration DOC CE (Declaration of conformity CE)
Mounting instruction
Description
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
