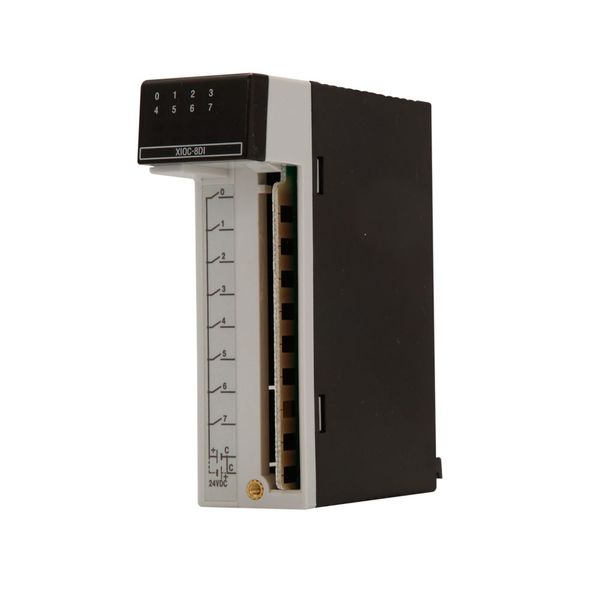

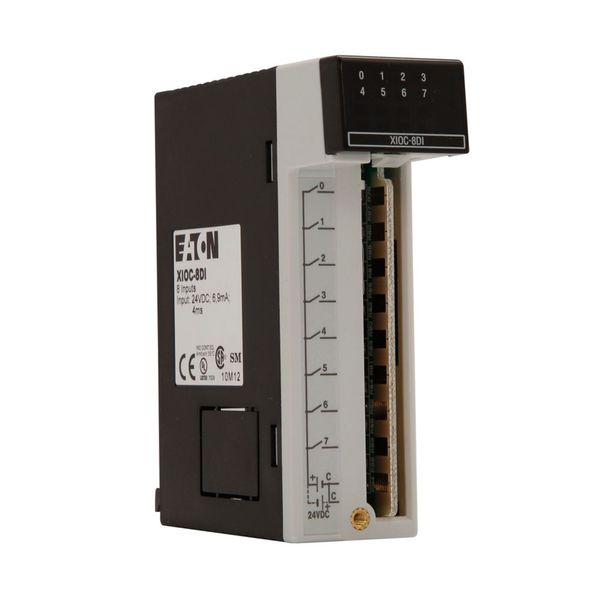

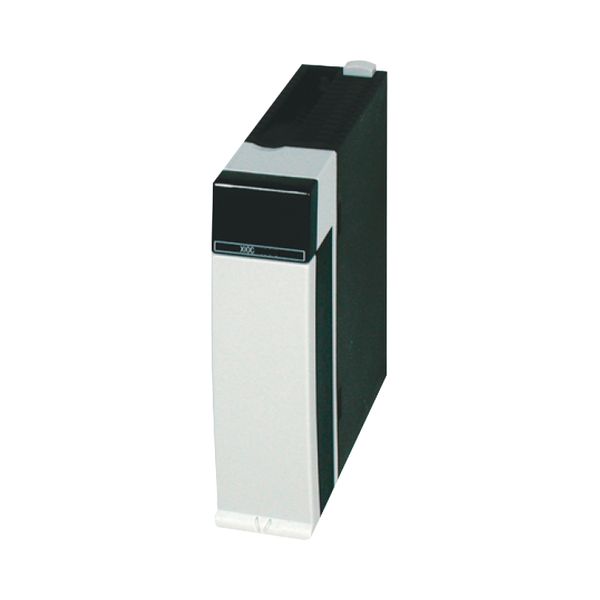

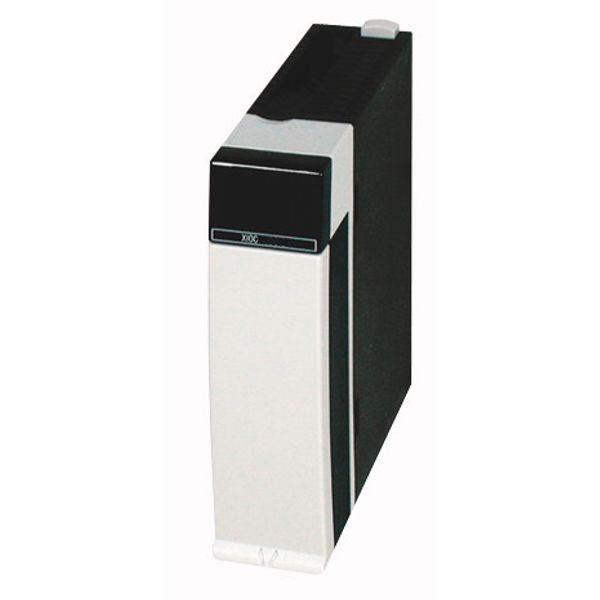

Digital input card for XC100/200, 24 V DC, 8DI
Order only
Price (excl. VAT):
98,07 €
EAN: 4015082578916
MPN: 257891
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Digital input card for XC100/200, 24 V DC, 8DI |
| Brand | EATON |
| Categories |
PLC Units & I/O Modules
|
| Country of origin | JP |
| Harmonized System Code | 8537 1091 00 |
| Number of digital inputs | 8 |
| Number of digital outputs | 0 |
| Voltage type of supply voltage | DC |
| Output current | 0 A |
| Type of digital output | None |
| Type of electric connection | Screw-/spring clamp connection |
| Supply voltage AC 50 Hz | 0 V |
| Supply voltage DC | 20.4-28.8 V |
| Permitted voltage at output | 20.4-28.8 V |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
Packing details
| Packing level 1 | 4015082578916 |
Other Technical data
| Width | 30 mm |
| Height | 95 mm |
| Depth | 100 mm |
| Input current at signal 1 | 4 mA |
| Suitable for safety functions | No |
| Time delay at signal exchange | 1-4 ms |
| Type of voltage (input voltage) | DC |
| Redundancy | No |
| Short-circuit protection, outputs available | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | None |
| Supply voltage AC 60 Hz | 0 V |
| Permitted voltage at input | 20.4-28.8 V |
| Type of output voltage | DC |
| SIL according to IEC 61508 | None |
Description
Modular programmable controllers XC100 and XC200 offer an outstanding level of scalability. Different CPU performance classes and a wide range of expansion modules (XIOC-Module) are available. The compact modular PLCs XC152 facilitate cost-effective solutions of automation tasks using their computing power, the SmartWire-DT interface as well as a whole range of further interfaces. a particular feature is the ability to integrate the product into modern communication concepts. Data exchange via the Ethernet interface to OPC clients or the integrated WEB servers enables the creation of innovative solutions.
