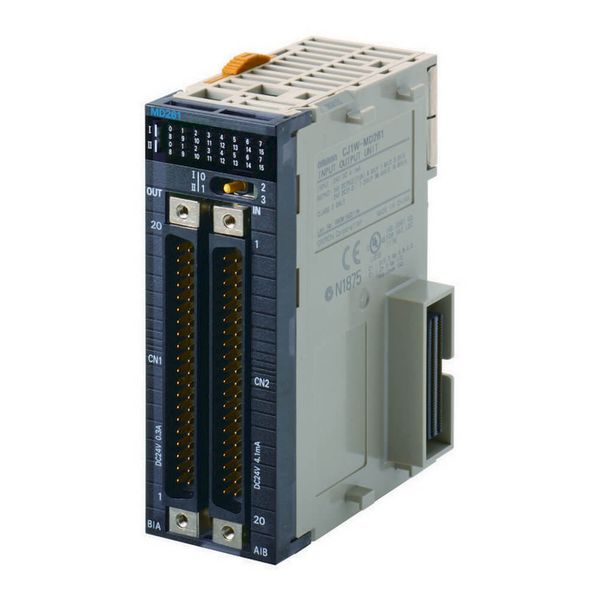

Digital I/O unit, 32 x 24 VDC inputs, 32 x transistor outputs, NPN, 0. CJ1W0108C
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
571,09 €
EAN: 4536854880995
MPN: CJ1W-MD261
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Digital I/O unit, 32 x 24 VDC inputs, 32 x transistor outputs, NPN, 0. CJ1W0108C |
| Brand | Omron |
| Categories |
PLC Units & I/O Modules
|
| Country of origin | NL |
| Harmonized System Code | 8541 2900 00 |
| Number of digital inputs | 32 |
| Number of digital outputs | 32 |
| Voltage type of supply voltage | DC |
| Output current | 0.3 A |
| Type of digital output | Transistor |
| Type of electric connection | Flat plug-in connection |
| Supply voltage DC | 12-24 V |
| Permitted voltage at output | 10.2-26.4 V |
| Digital inputs configurable | Yes |
| Digital outputs configurable | Yes |
Packing details
| Packing level 1 | 4536854880995, 4536854880995 |
Other Technical data
| Width | 31 mm |
| Height | 90 mm |
| Depth | 66.5 mm |
| Input current at signal 1 | 4.1 mA |
| Suitable for safety functions | No |
| Time delay at signal exchange | 0-32 ms |
| Type of voltage (input voltage) | DC |
| Redundancy | No |
| Short-circuit protection, outputs available | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | Level a |
| Permitted voltage at input | 20.4-26.4 V |
| Type of output voltage | DC |
| SIL according to IEC 61508 | None |
Downloads
Description
Digital I/O unit, 32 x 24 VDC inputs, 32 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, 3.2 A max, 2 x FCN40 connectors (not included)
