DIFFERENTIEELBLOK ME 4P 200-440V WS

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 3606480018756

MPN: LV429213

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DIFFERENTIEELBLOK ME 4P 200-440V WS
Brand	Schneider Electric
Categories	Trip & Release Units
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3030 00
Rated fault current	0.3 A
Rated control supply voltage at AC 50 Hz	200-440 V
Rated control supply voltage at AC 60 Hz	200-440 V
Max. rated operation voltage Ue	440 V

Packing details

Packing level 1

3606480018756

Other Technical data

Delay adjustable	No
Max. power on-delay time	40 ms

Description

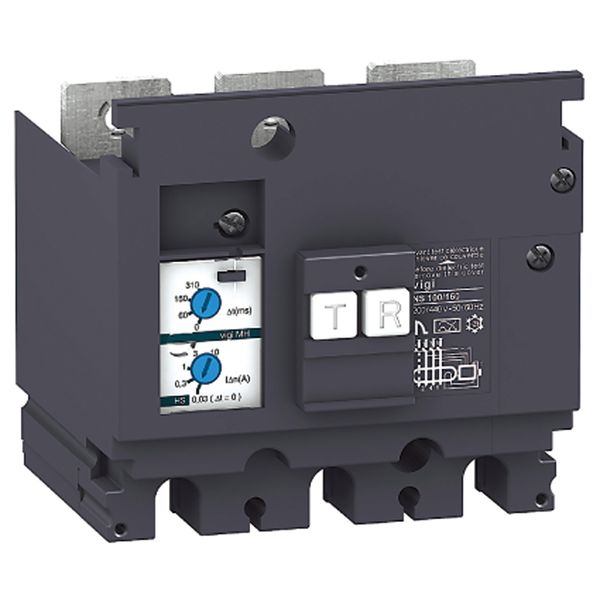

It is a ME Vigi add-on module for 4 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a ME type module in 4 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is fixed to 30mA, the time delay is also fixed. The dimensions of the circuit breaker equipped with this module are 140mm x 236mm x 86mm.
