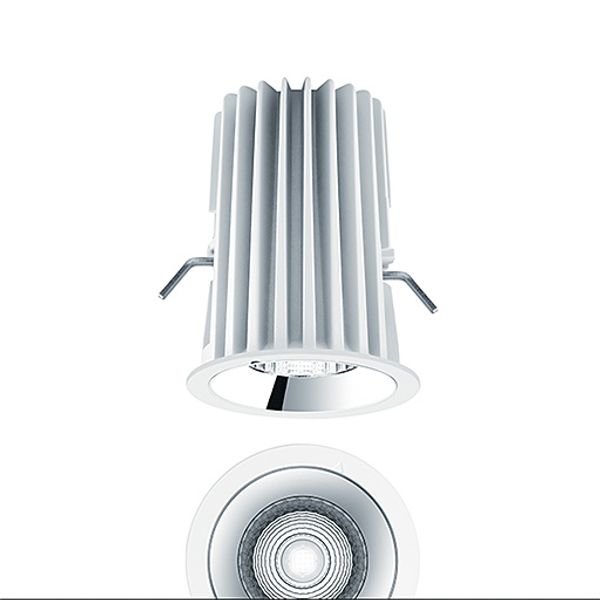

DIAMO R68 1500-930 BC FL-DAL WH - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167357353
MPN: 60818439
Package: 1
Pallet: 245
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | DIAMO R68 1500-930 BC FL-DAL WH - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 90-100 |
| Height/depth | 100 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 3000 K |
| Max. system power | 25 W |
| Rated luminous flux according to IEC 62722-2-1 | 1500 lm |
| Luminaire efficacy | 60 lm/W |
Packing details
| Packing level 1 | 4053167357353, 4053167357353 |
| Packing level 2 | 4053167357353 |
Other Technical data
| Protection class | II |
| Outer diameter | 77 mm |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.75-1.5 mm² |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 15 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | Yes |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 115 mm |
| Power factor | 0.95 |
Downloads
Description
LED ceiling-recessed luminaire for high-performance accent lighting; precise light distribution with no diffuse light and excellent glare control; lamp(s): LED1500-930, (30 °) FLOOD distribution characteristic; reflector: silver, mirrorbrite; Colour rendering Ra > 90, colour temperature 3000 K (warm white); Luminaire luminous flux: 1500 lm, Luminaire efficacy: 60 lm/W; service life: 50000h for luminous flux at 80% of initial value; includes separate control unit, Wireless connection via app with Bluetooth® 4.x - basicDIM Wireless; maximum brilliance thanks to specially designed reflector made of high-grade aluminium in silver anodised finish; passive cooling integrated in housing; die-cast aluminium housing with white trim; luminaire wired with halogen-free leads; power connection: 2-pole terminal; Luminaire input power: 25 W; mains voltage: 220-240V/ 50-60Hz; installation: using concealed screws in ceilings of thickness 1-25mm; ceiling cut-out: Ø68mm, recessed depth: 115 mm; weight: 0.99 kg;
Bluetooth® information: Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm; installation in metal ceilings and concrete ceilings not permitted; luminaire configuration: mobile control to luminaire max. 6m, from luminaire to luminaire max. 4m.
