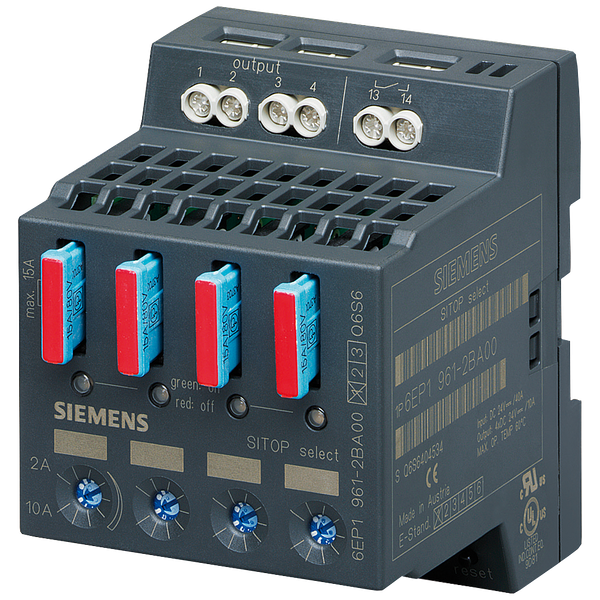

Diagnostics module SITOP select 24V DC 4×2–10A
Technical Information
| Item condition | New |
| Manufacture name | Diagnostics module SITOP select 24V DC 4×2–10A |
| Brand | Siemens |
| Categories |
Monitoring Relays
|
| Country of origin* | AT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Single-phase under current possible | No |
| Function DC-current hysteresis | Yes |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 4025515150640 |
Other Technical data
| Width | 72 mm |
| Height | 90 mm |
| Depth | 90 mm |
| External current transformer | No |
| With detachable clamps | No |
| Single-phase hysteresis possible | No |
| Three-phase hysteresis possible | No |
| Three-phase under current possible | No |
| Single-phase overcurrent possible | No |
| Three-phase overcurrent possible | No |
| Contains function DC-voltage under current | No |
| Contains function DC-voltage overcurrent | Yes |
| Rated control supply voltage at DC | 22-30 V |
| Max. permitted delay-on energization time | 5 s |
| Min. adjustable delay-on energization time | 0 s |
| Max. permitted off-delay time | 0 s |
| Min. adjustable off-delay time | 0 s |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
Description
SITOP select Diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A *Ex approval no longer available* The SITOP select diagnostics module is the optimal addition to all 24 V power supplies for distributing and monitoring the load current across several branch circuits. Overload and short-circuit in one or more feeders are reliably detected. The electronics tolerate short-term current peaks, e.g. due to high inrush current, and de-energize feeders with longer overload. This is ensured even on high-resistance cables and for short-circuits that develop slowly over time. The intact feeders continue to be supplied with 24 V without any interruption or disturbance, thereby minimizing plant downtimes. The faulty channel is signaled using LEDs and a group signal contact. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
