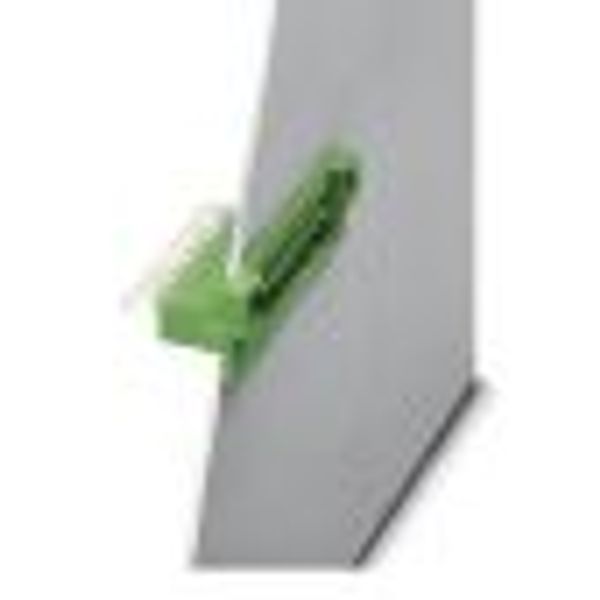

DFK-MSTB 2,5/ 4-GF - Feed-through header

Name: DFK-MSTB 2,5/ 4-GF - Feed-through header
Brand: Phoenix Contact
Price: 1.920 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

1,92 € per pcs

This price is valid until 24.12.25

Subtotal: 96,00 € MOQ: 50

EAN: 4017918005078

MPN: 0710044

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	DFK-MSTB 2,5/ 4-GF - Feed-through header
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	DE
Harmonized System Code	8536 6930 00
Type of connection	Printed circuit board to cable
Rated voltage	320 V
Number of poles	4
Operating temperature	-40-100 °C
Rated surge voltage	4 kV
Type of electric connection	Other
Connector model	Fixed connector
Angle PCB/contact	Other
Rated current In	12 A

Packing details

Packing level 1

4017918005078, 4017918005078

Other Technical data

Colour housing	Green
Contact type	Pin
Type of fastening	Other
Inflammability class of insulation material according to with UL94	V2
Material of contact surface	Tin
Over voltage category	III
Pollution degree	2
Diameter connection pin	3.2 mm
Length pin	9.3 mm
Modular spacing connections	5 mm
Number of plug-in contact rows	1
Type of banding	Carton (for SMD)
Modular spacing contacts	5 mm
Material insulation body	Other
Type of PCB fastening	Other

Description

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: DFK-MSTB 2,5/..-GF, pitch: 5 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking, mounting: Threaded flange, type of packaging: packed in cardboard
