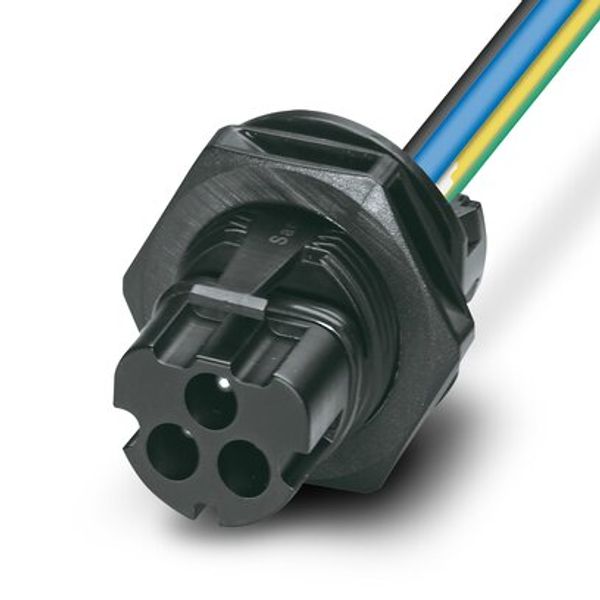

PRC 3-FT25-MC2,5-150 - Device connector, rear mounting
In stock: No
Vendor stock: No
Minimal order quantity: 10
Price (excl. VAT):
6,31 €
per pcs
Subtotal: 63,10 €
MOQ: 10
EAN: 4046356867726
MPN: 1409219
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PRC 3-FT25-MC2,5-150 - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | PL |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 0 V |
| Cable length | 0.15 mm |
| Number of poles | 0 |
| Housing material | Other |
| Operating temperature | -40-105 °C |
| Rated current In | 0 A |
Packing details
| Packing level 1 | 4046356867726, 4046356867726 |
Other Technical data
| Core cross section | 2.5 mm² |
| Ambient temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With shield connection | No |
| Material of contact surface | Other |
| Min. number of insertion cycles | 100 |
| Number of power contacts | 0 |
| Number of control contacts | 0 |
Description
Panel feed-through, Range of articles: PRC 35, Device connector, rear mounting, housing material: PPE, color: black, number of positions: 3, max. conductor cross section: 2.5 mm², rated voltage: 690 V AC, rated current: 24 A, Connection method: Crimp connection, Type of contact: Pin, cable length: 150. This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary.
Accessories
In stock: No
Phoenix Contact
PRC COVER M - Protective cap
1,43 €
per pcs
Subtotal: 71,50 €
MOQ: 50
EAN: 4046356867764
MPN: 1409237
Box: 1
