SACC-DSI-M5FS-4CON-L180 - Device connector, rear mounting
Order only
Minimal order quantity: 20
Price (excl. VAT):
7,18 €
per pcs
Subtotal: 143,60 €
MOQ: 20
EAN: 4046356024457
MPN: 1530650
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-DSI-M5FS-4CON-L180 - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 60 V |
| Contact type | Bus |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP67 |
| Diameter connector | 0 mm |
| Rated current In | 1 A |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356024457, 4046356024457 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | HB |
| Material of contact surface | Gold |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Min. number of insertion cycles | 0 |
| Material thread ring | Other |
Description

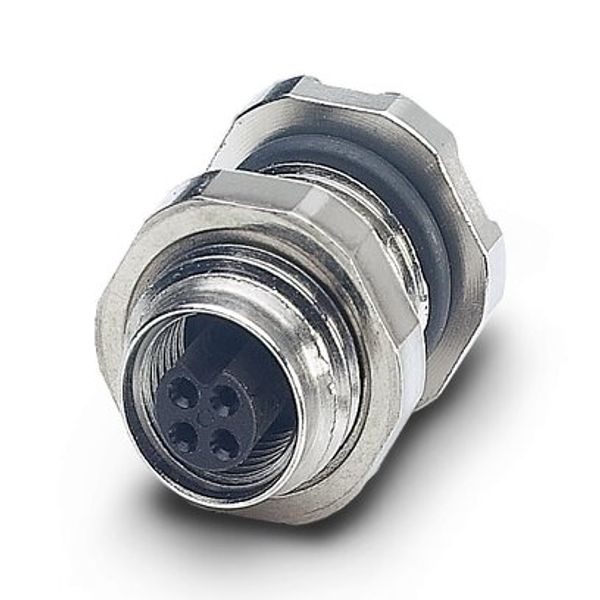

Sensor/actuator flush-type socket, 4-pos., M5, prewall/screw mounting, with straight solder connection
