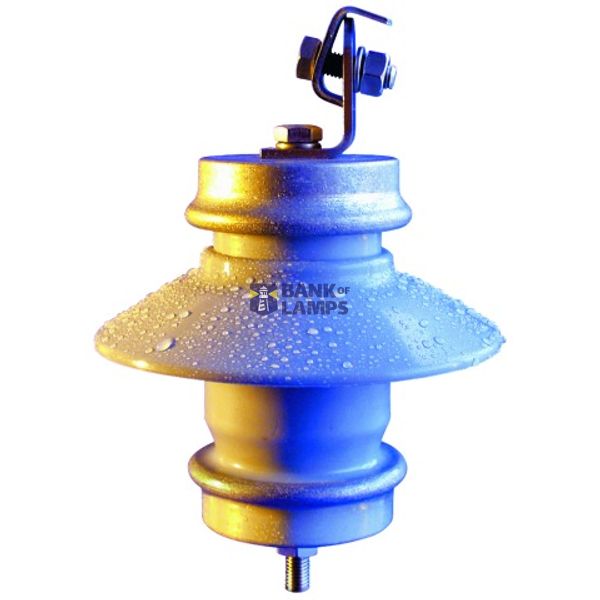

DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d. image 1

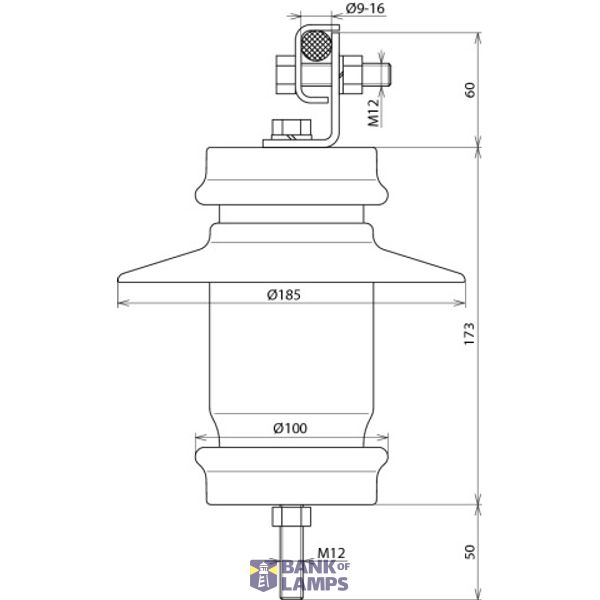

DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d. image 2
DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d. thumbnail 1
DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d. thumbnail 2
Dehn

DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d.

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name DEHNtrack surge arrester Ur: 1.2kV In: 10kA line discharge class 3, d.
Brand Dehn
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8535 4000 00
ETIM EC002676
Model With screen
Creepage path 230 mm

Packing details

Packing level 1 4013364103085, 4013364103085

Other Technical data

Height 173 mm

Downloads

Product data sheet Circuit diagram

Description

DEHNtrack medium-voltage arresters for protecting d.c. systems and rectifier stations against surges. They are particularly suited for installation in rolling stock, trolley buses and overhead lines. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and deposits of pollution. Long service life thanks to powerful metal oxide varistors.
