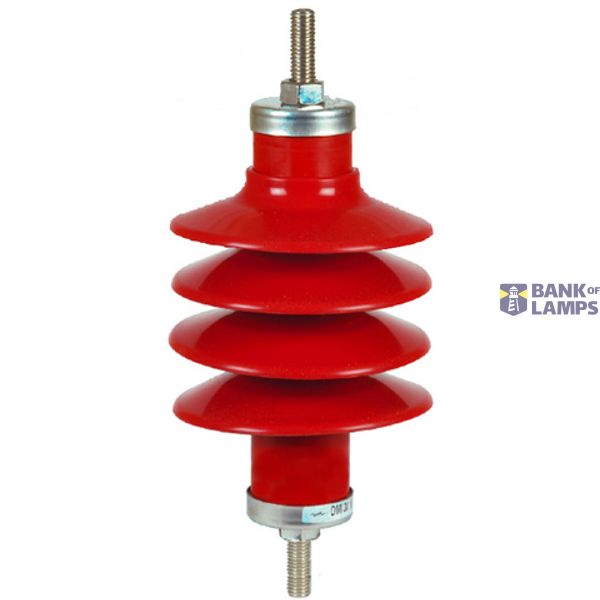

DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa image 1

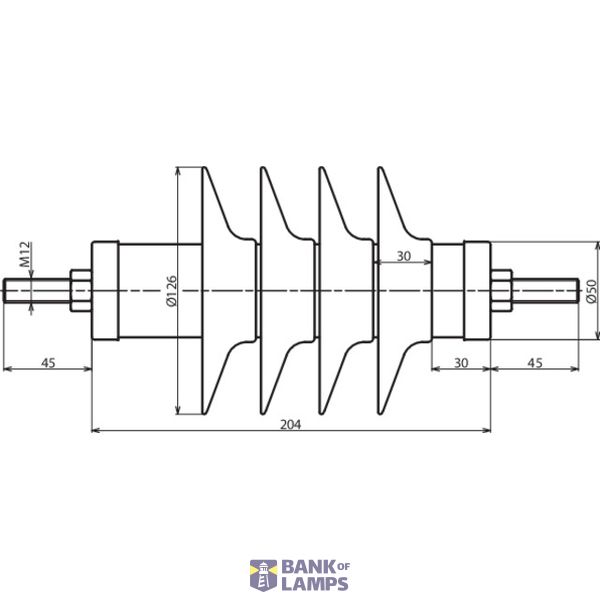

DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa image 2
DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa thumbnail 1
DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa thumbnail 2
Dehn

DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name DEHNmid MV arrester Ur: 21kV In: 10kA line disch. class 1 incr. creepa
Brand Dehn
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8535 4000 00
ETIM EC002676
Model With screen
Application Exterior area
Rated voltage AC 21 kV
Creepage path 480 mm

Packing details

Packing level 1 4013364102965, 4013364102965

Other Technical data

Height 204 mm
Continuous voltage AC 16.8 kV

Downloads

Product data sheet Circuit diagram

Description

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.
