DEHNguard S FM surge arrester Type 2 1-pole Uc 48V AC w. remote sign.

Name: DEHNguard S FM surge arrester Type 2 1-pole Uc 48V AC w. remote sign.
Brand: Dehn
Price: 91.120 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

91,12 €

This price is valid until 24.12.25

EAN: 4013364119475

MPN: 952098

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	DEHNguard S FM surge arrester Type 2 1-pole Uc 48V AC w. remote sign.
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3030 00
Voltage protection level	0.33 kV
Nominal discharge surge current (8/20)	7.5 kA
Nominal voltage AC	42 V
Degree of protection (IP)	IP20
System configuration TN	Yes
System configuration TN-C-S	Yes

Packing details

Packing level 1

4013364119475, 4013364119475

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Number of conductors (without earthing)	1
Construction size	1 modular spacing
Max. continuous voltage AC	48 V
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	60 V
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-C	Yes
System configuration TN-S	Yes
System configuration TT	Yes
System configuration other	No
Max. discharge surge current (8/20)	25 kA
Short-circuit breaking capacity (Isccr)	50 kA
Max. overcurrent protection device, parallel connection (fuse)	125 A
Max. overcurrent protection device, series connection (fuse)	100 A

Downloads

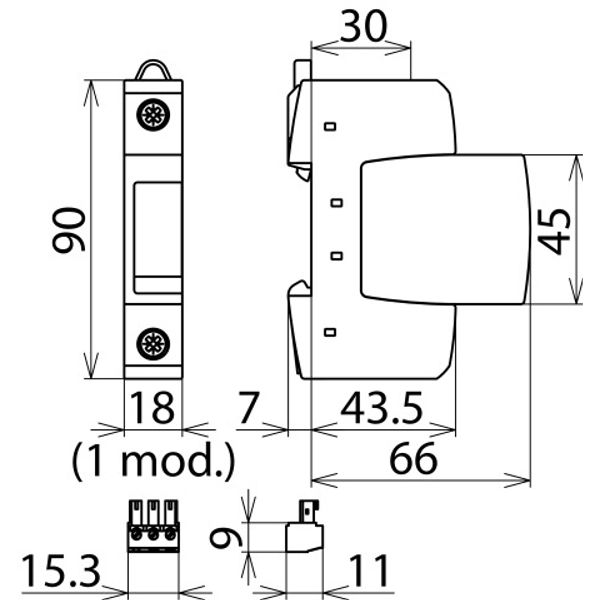

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Single-pole DEHNguard S surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection module. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer´s installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
