DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology

Name: DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology
Brand: Dehn
Price: 241.530 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

241,53 €

This price is valid until 31.12.25

EAN: 4013364376649

MPN: 952330

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3030 00
Voltage protection level	1.5 kV
Nominal discharge surge current (8/20)	20 kA
Nominal voltage AC	230 V
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364376649, 4013364376649

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Number of conductors (without earthing)	3
Construction size	3 modular spacing
Max. continuous voltage AC	275 V
Category type 2	Yes
Signalling at the device	Optic
Integrated backup fuse	Yes
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-C	Yes
Short-circuit breaking capacity (Isccr)	25 kA
Leakage-current free	Yes

Downloads

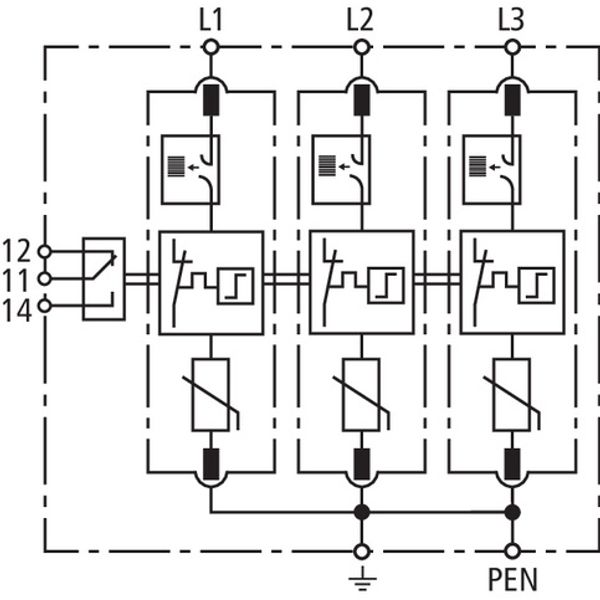

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Multipole DEHNguard M ACI surge arrester type 2 according to EN 61643-11 uses an integrated switch / spark gap combination making external fuses superfluous, consisting of a base part and plug-in protection modules. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer's installations against surges. For use in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
