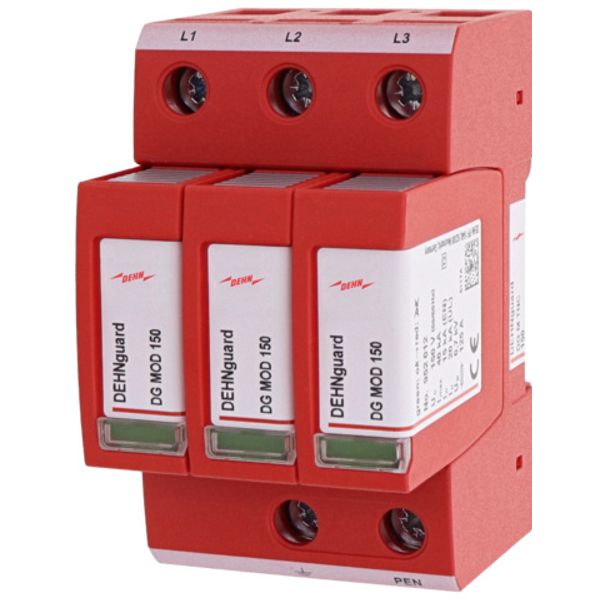

DEHNguard M surge arrester

Name: DEHNguard M surge arrester
Brand: Dehn
Price: 215.370 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

215,37 €

This price is valid until 24.12.25

EAN: 4013364123939

MPN: 952313

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	DEHNguard M surge arrester
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3030 00
Voltage protection level	0.7 kV
Nominal discharge surge current (8/20)	15 kA
Nominal voltage AC	120 V
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364123939, 4013364123939

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	3
Construction size	3 modular spacing
Max. continuous voltage AC	150 V
Category type 2	Yes
Signalling at the device	Optic
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-C	Yes
Max. discharge surge current (8/20)	40 kA
Short-circuit breaking capacity (Isccr)	50 kA
Max. overcurrent protection device, parallel connection (fuse)	125 A
Max. overcurrent protection device, series connection (fuse)	100 A

Downloads

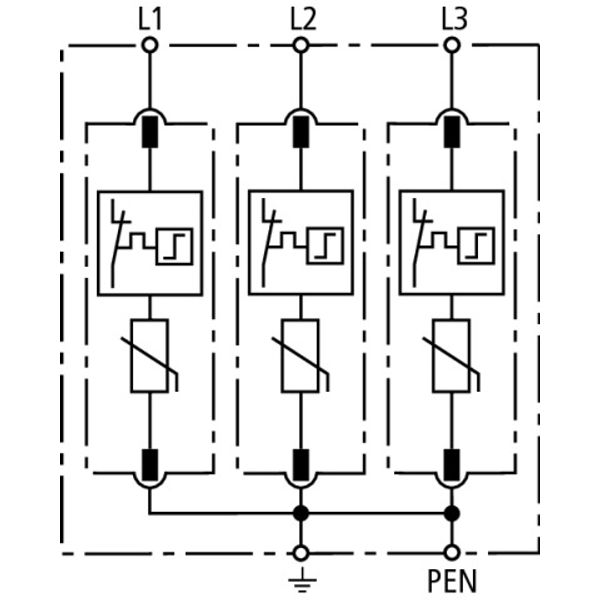

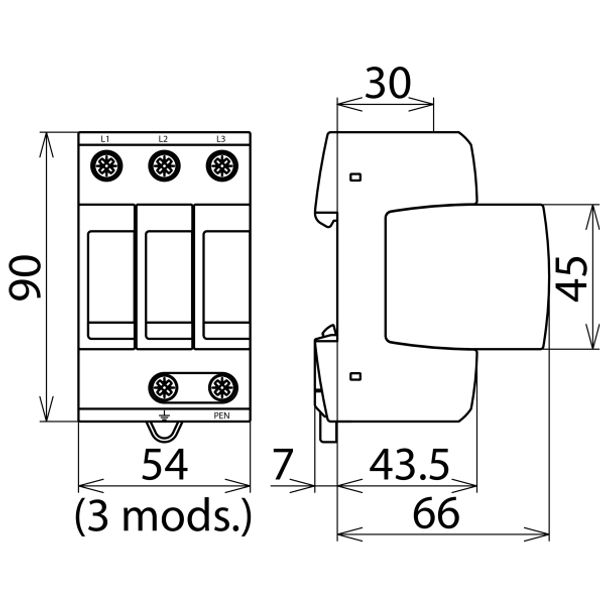

Product data sheet Dimensioned drawing Circuit diagram

Description

Multipole DEHNguard M surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection modules. High reliability due to "Thermo Dynamic Control" SPD monitoring device. For protecting low-voltage consumer´s installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
