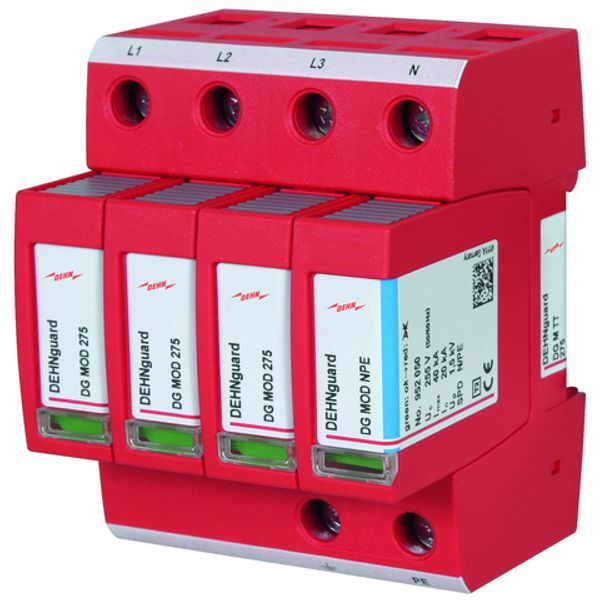

DEHNguard M surge arrester

Name: DEHNguard M surge arrester
Brand: Dehn
Price: 91.300 EUR
Availability: InStock

In stock In vendor's stock

Price (excl. VAT):

91,30 €

This price is valid until 30.06.26 or while stock lasts

EAN: 4013364108479

MPN: 952310

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	DEHNguard M surge arrester
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Nominal discharge surge current (8/20)	20 kA
Nominal voltage AC	230 V
Voltage protection level L-N	1.5 kV
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364108479, 4013364108479

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	4
Construction size	4 modular spacing
Max. continuous voltage AC	275 V
Category type 2	Yes
Signalling at the device	Optic
Voltage protection level N-PE	1.5 kV
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-S	Yes
System configuration TT	Yes
System configuration other	No
Max. discharge surge current (8/20)	40 kA
Short-circuit breaking capacity (Isccr)	50 kA
Max. overcurrent protection device, parallel connection (fuse)	125 A
Max. overcurrent protection device, series connection (fuse)	100 A
